Installed and wired my ARB dual
A little video I took of it operational on my instagram, feel free to take a look and let me know what you think.
https://www.instagram.com/stank_taco/
https://expeditionessentials.com/
Bed mount kit with extended wire harness.
Vixen air 3 gallon aluminum tank

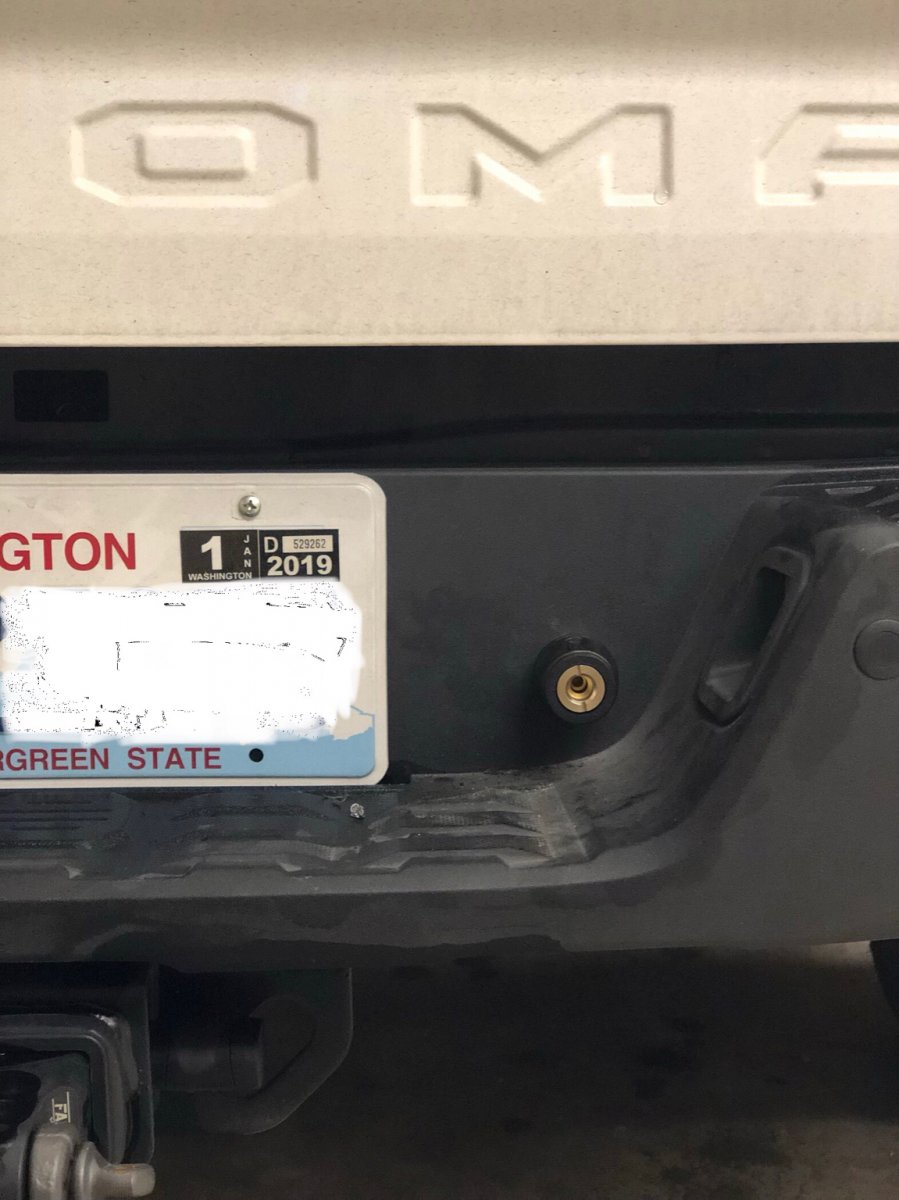

ARB QD with dust cover mounted near my rear license plate.
All Stainless steel braided lines with JIC fittings.

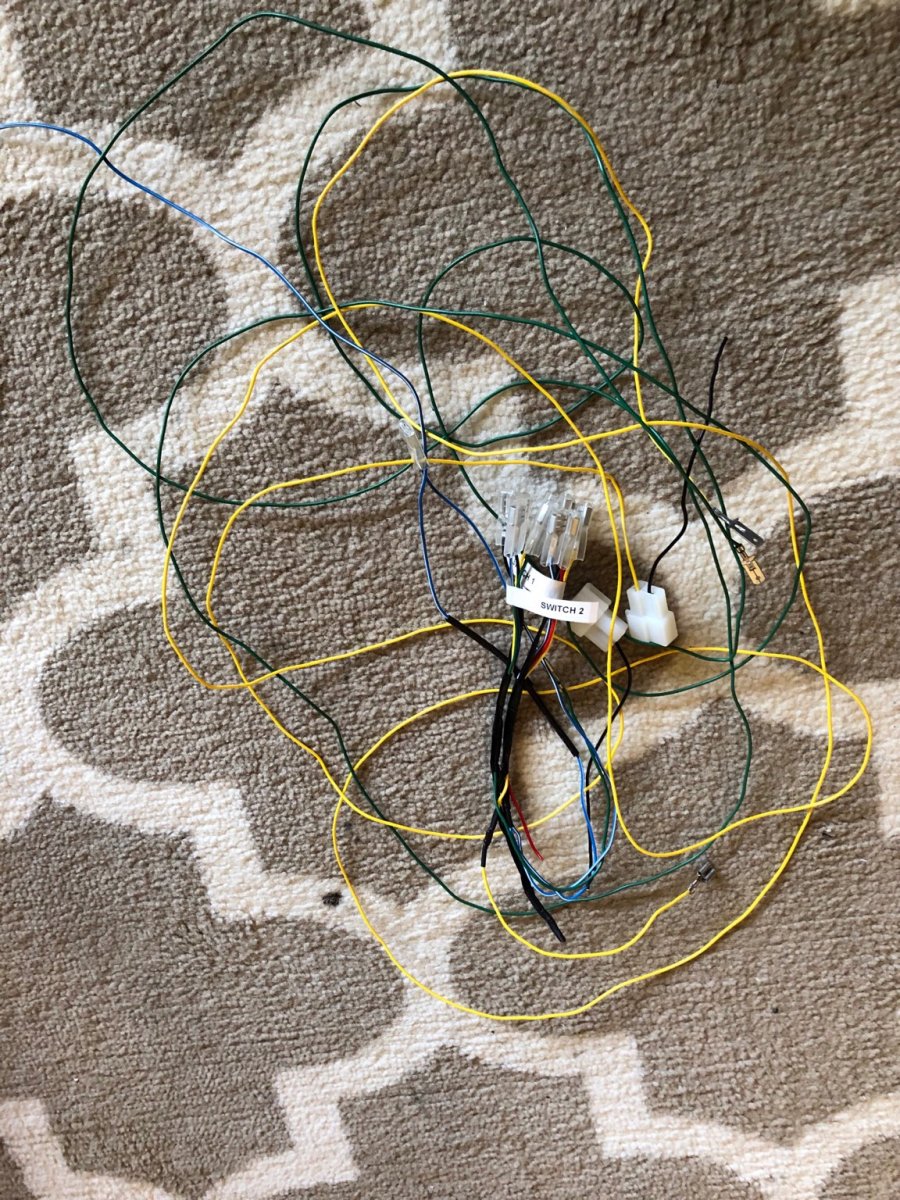

ARB Wiring harness after removing all of the electrical tape
Parts of the harness that were not useful
Harness after it was cleaned up, prior to heat shrinking.

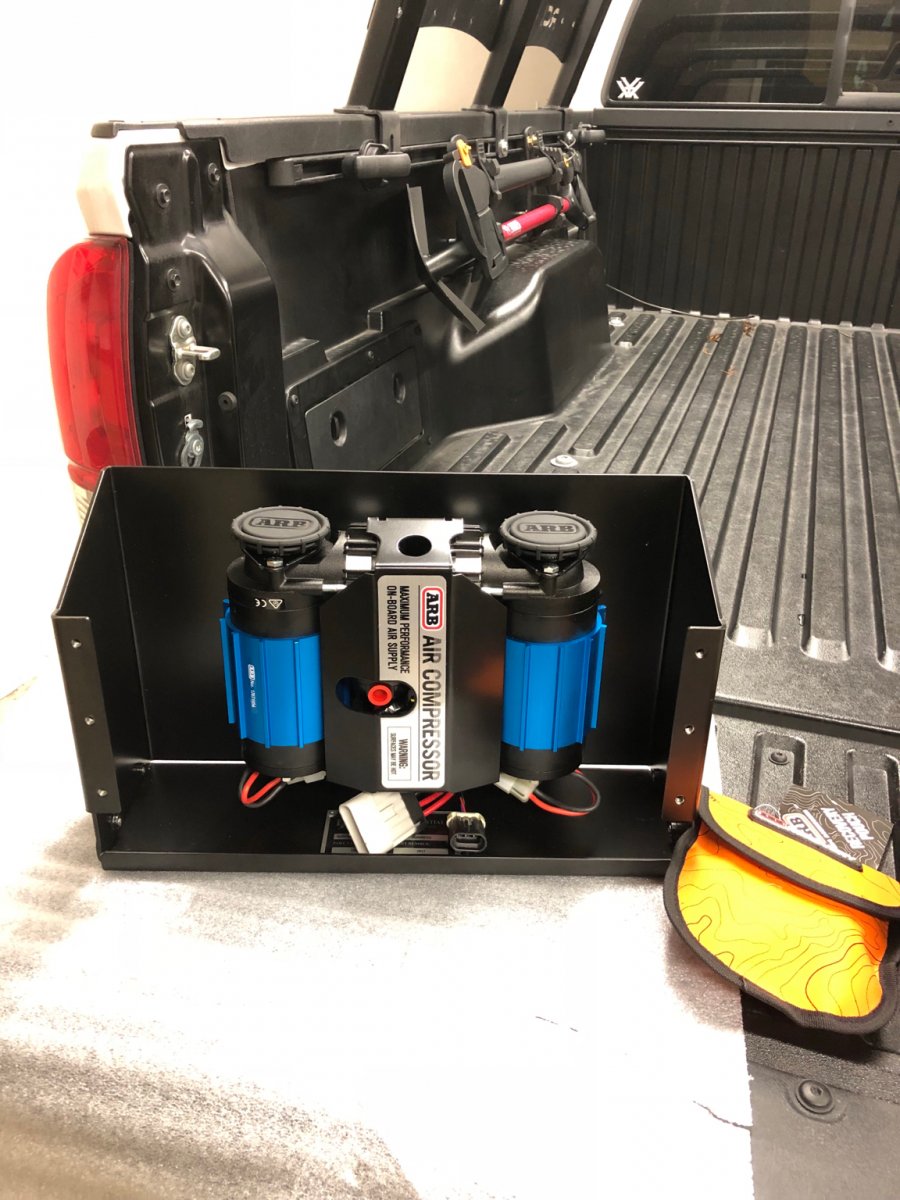

Twin compressor mounted in the expedition essentials bed mount.
QD mounted using a brass bulkhead fitting.
3 gallon air tank mounted and fully plumbed. I used a T on the exit so that I can run a hard line later up front for a QD under the front bumper in the future.
After a little trimming I got the ARB switch mounted and wired up. Had a CH4x4 switch but it’s a 3amp switch and I needed a min of a 15amp switch.
