Kbvoodoo Max Modular 58” with encore Stang Bed cover.

Arizona

Active Member
(Click on first pic and scroll, not sure why pics look locked)

Must relocate (front) aluminum channel holder 5 1/4” back to allow the extended bracket to mount in its place( Otherwise you can’t allow the 54 1/4 “ center in center of the rack brackets). Mark and drill bed also and use a lag bolt type
View attachment 31182
View attachment 31183


The seal also has to be trimmed in order for the rack bracket to sit flush.
View attachment 31184
View attachment 31185

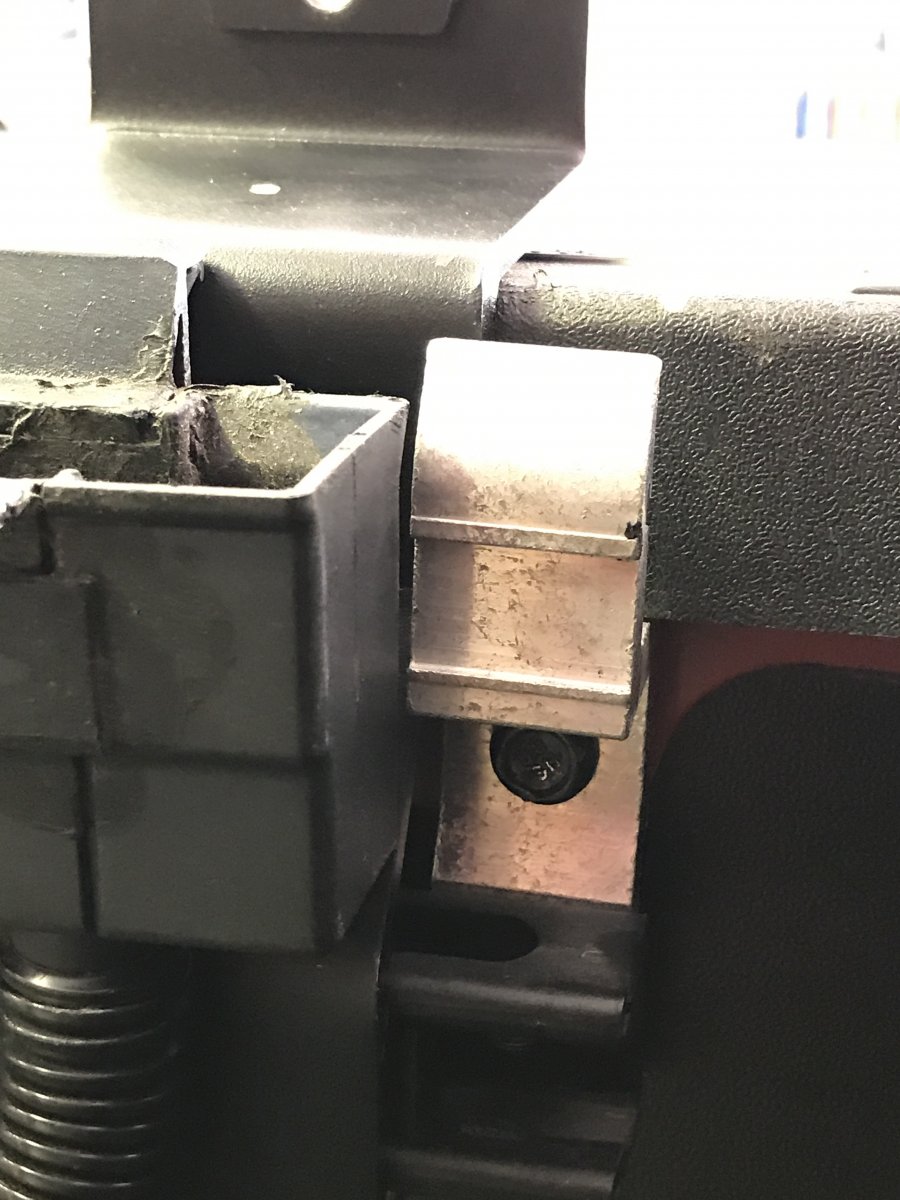

This bracket has to sit flush in order to tighten down straight and allowing for the bed cover to click into place. Mark and trim accordingly. DONE!!!
View attachment 31186
View attachment 31187
