New guy already getting into driveline vibration scene

Discussion in 'Introductions' started by kell2012, Sep 8, 2017.

  1. kell2012

    kell2012 Active Member

    Hello Everyone

    I have a 2012 Tacoma: RWD, Access cab, MANUAL 5 spd, I4

    I reviewed Driveline Vibration T-SB-0008-14 and 2012 one. They specify automatic transmissions. Anyone heard of Toyota covering repairs for a MANUAL?

    My situation:
    Still in drivetrain warranty (bought new Jan 2013)
    At 54,400k: sudden change. Truck has a deeper, throaty sound and slight rumbling (for lack of a better word) coming from below and behind driver seat. Also the sound of bearings (hell, what do I know what it is) or glass marbles clacking. Coming from same direction.
    I hear this exactly as described in the TSBs.
    I get to 15 mph in 1st gear, put it in 2nd, push right through 25 mph—and it’s a different animal.
    Handling is the same. Just sounds and feels like it hit puberty and voice changed—and it thinks it grew a couple more cylinders.

    HOWEVER
    Right NOW I get a very slight vibration in floorboard—BUT nowhere else.

    Questions:
    Will this get worse over time?
    I ask because I’m at 55,900k/a few months of drivetrain warranty left.
    It’s a short window.
    I wonder whether Toyota would cover me before warranty expiration…

    Keeping in mind that my expertise doesn’t extend much beyond changing oil:
    The TSBs seem to be addressing symptoms, but not causes.
    My mechanic says something about the leaf springs is causing drive shaft angle to change. Doesn’t sound great.

    I’d appreciate any info you have.
    THANK YOU

  2. Avatar

    Tacoma Forum Sign Up!

    Join TacomaForum.com Today - It's Totally Free!

    Are you a Toyota truck fan? If so we invite you to join TacomaForum.com. Our site is specifically designed for you and it's a great place for Toyota Tacoma Fans to meet online.
    Once you join you'll be able to post messages, upload pictures of your truck, and have a great time with other Toyota Tacoma fans. Whether your an old timer or just bought your Tacoma you'll find that TacomaForum.com is a great community to join. Best of all it's totally free!

    Join TacomaForum.com Today! JOIN FOR FREE

  3. OR17TRD

    OR17TRD Well-Known Member

    I'm pretty sure it's a new leaf pack that changes the angle for that TSB. @whippersnapper02 was just trying to get his done. He might know more about this situation.
    Do you have any aftermarket mods, lift wheels tires etc.?
    The TSB should be different than a warranty covered issue. Covered differently.

  4. OR17TRD

    OR17TRD Well-Known Member

    Do you have pictures of this 2012 taco? Welcome to the forum. :).

  5. whippersnapper02

    whippersnapper02 Negative Nancy

    The TSB is just for payload handling. There is a recall but that's for possible leaf spring separation. Toyota will more than likely not do anything about vibrations. Mine has done it since new and Toyota just blamed my Banks exhaust.

  6. OR17TRD

    OR17TRD Well-Known Member

    Rumble rumble rumble...

  7. OP
    kell2012

    kell2012 Active Member

    Thanks OR17

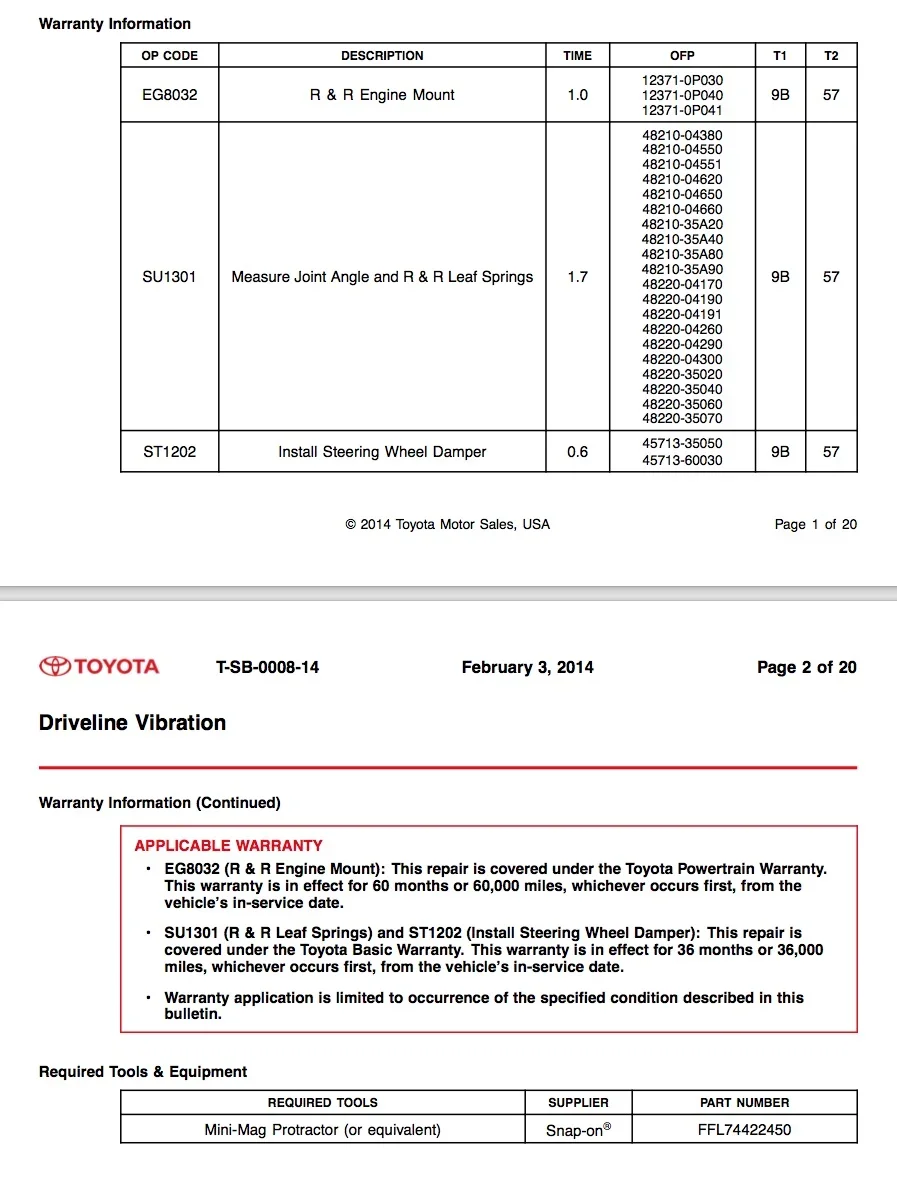

    It appears... Toyota will cover this stuff under original warranties. Attached image is from 2014 TSB. Bugs me that leaf replacement would only be basic warranty. Sure, not part of d-train, but apparently the CAUSE of a d-train problem.
    No mods other than tonneau cover and hitch. Tire changes but same specs, including snows that i switch in every winter. However they are on steel rims, if that makes a diff. 2014 tsb excerpt.jpg
    Have pulled pop-up camper for one long trip per year, after verifying w/Toyota that it's valid/certified.

    Thanks whippersnapper
    Has Toyota stated it's only about payload?

  8. OP
    kell2012

    kell2012 Active Member

    sorry whippersnapper: i meant the tsb. Didn't know there was any recall on this

  9. OP
    kell2012

    kell2012 Active Member

    I have some pics but still need to reduce, as server not taking them

  10. Bogunn

    Bogunn Well-Known Member

    Welcome to the forum.

  11. OP
    kell2012

    kell2012 Active Member

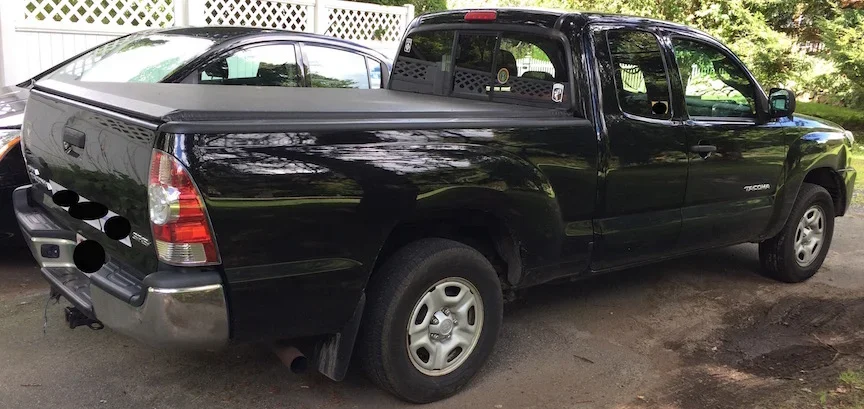

    Here are a couple pics from today. I only had 35 mm shots of when she was newer, and it's a hassle to make the files small enough for server.





    JonRod and OR17TRD like this.
  12. OP
    kell2012

    kell2012 Active Member

    Thank you!

    Bogunn likes this.
  13. OP
    kell2012

    kell2012 Active Member

    OR17, now I see your earlier point--that if this is about payload or something it could be straight warranty coverage, under applicabale warranty terms, not any included in a TSB.

  14. whippersnapper02

    whippersnapper02 Negative Nancy

    It was also for 6 lug trucks. I don't think there was anything for the 5 luggers.

  15. OR17TRD

    OR17TRD Well-Known Member

    Get what ever you can covered under your warranty before it runs out.

    Bogunn likes this.
  16. OP
    kell2012

    kell2012 Active Member

    A lot being said about Leaf Spring Separation...

    If anyone cares to comment: do my springs seem to have problems? I see what I'd call separation, but we already know my level of expertise.

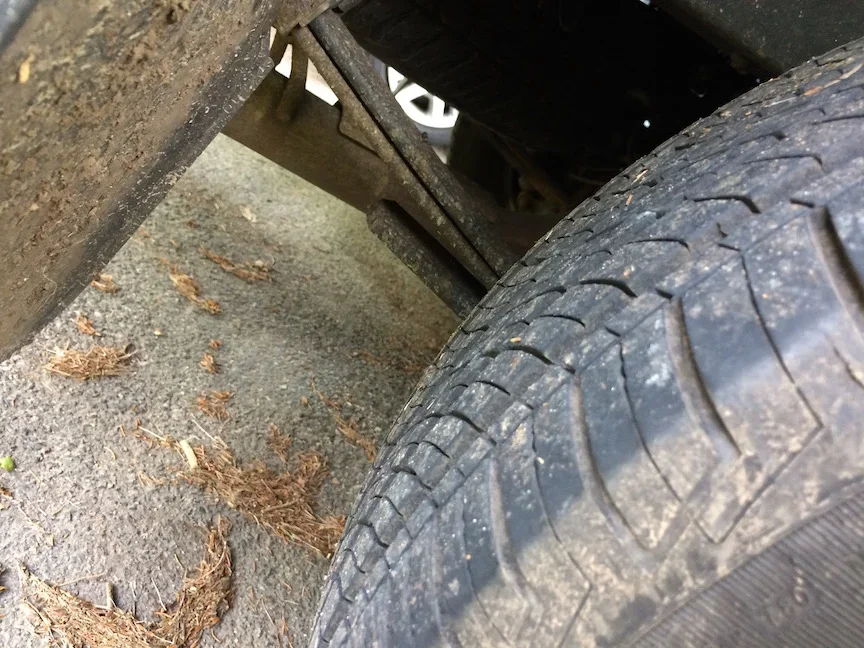

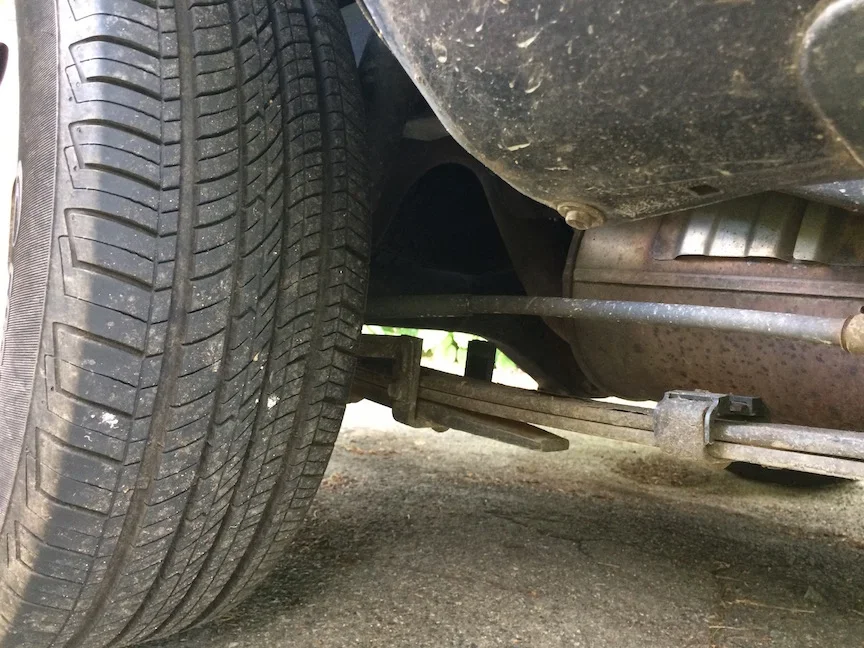

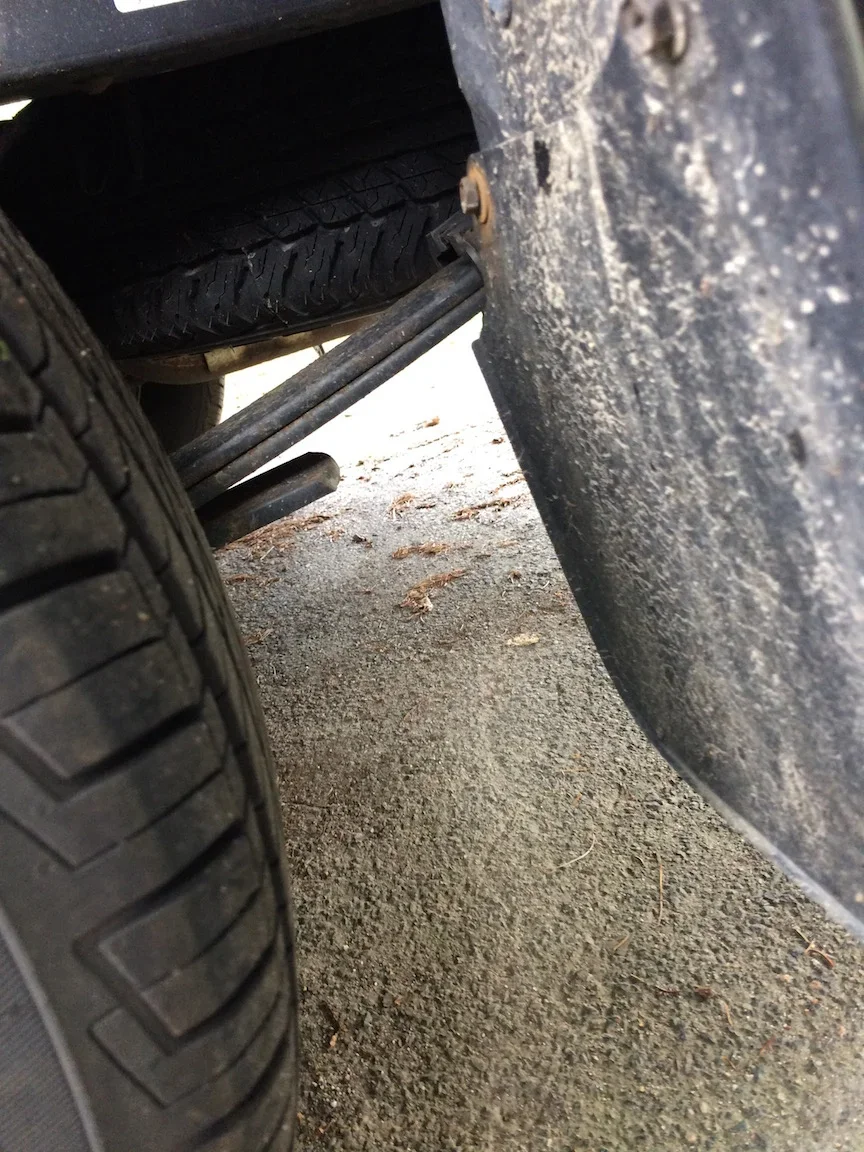

    Three shots: one from back of left, and both sides of right wheel.
    Thanks!






  17. OR17TRD

    OR17TRD Well-Known Member

    Not the worst I've seen. The bottom one is suppose to be like that. The Overload spring.

    Bogunn likes this.
  18. whippersnapper02

    whippersnapper02 Negative Nancy

    Completely normal.

    Bogunn likes this.
  19. OP
    kell2012

    kell2012 Active Member

    Thank you!

  20. OP
    kell2012

    kell2012 Active Member

    Yes absolutely
    Tough nut will be the fact that my Tacoma is a manual, and only automatics are listed in the TSBs

  21. OR17TRD

    OR17TRD Well-Known Member

    Stay calm. Make your case and stick to it. Keep repeating what you need and don't leave until you get it. Good luck.

    Bogunn and kell2012 like this.
