powder taco
Well-Known Member
Ok, well here it goes. It’s not complete......I am going to do some under hood clean up soon, this is it for now though.

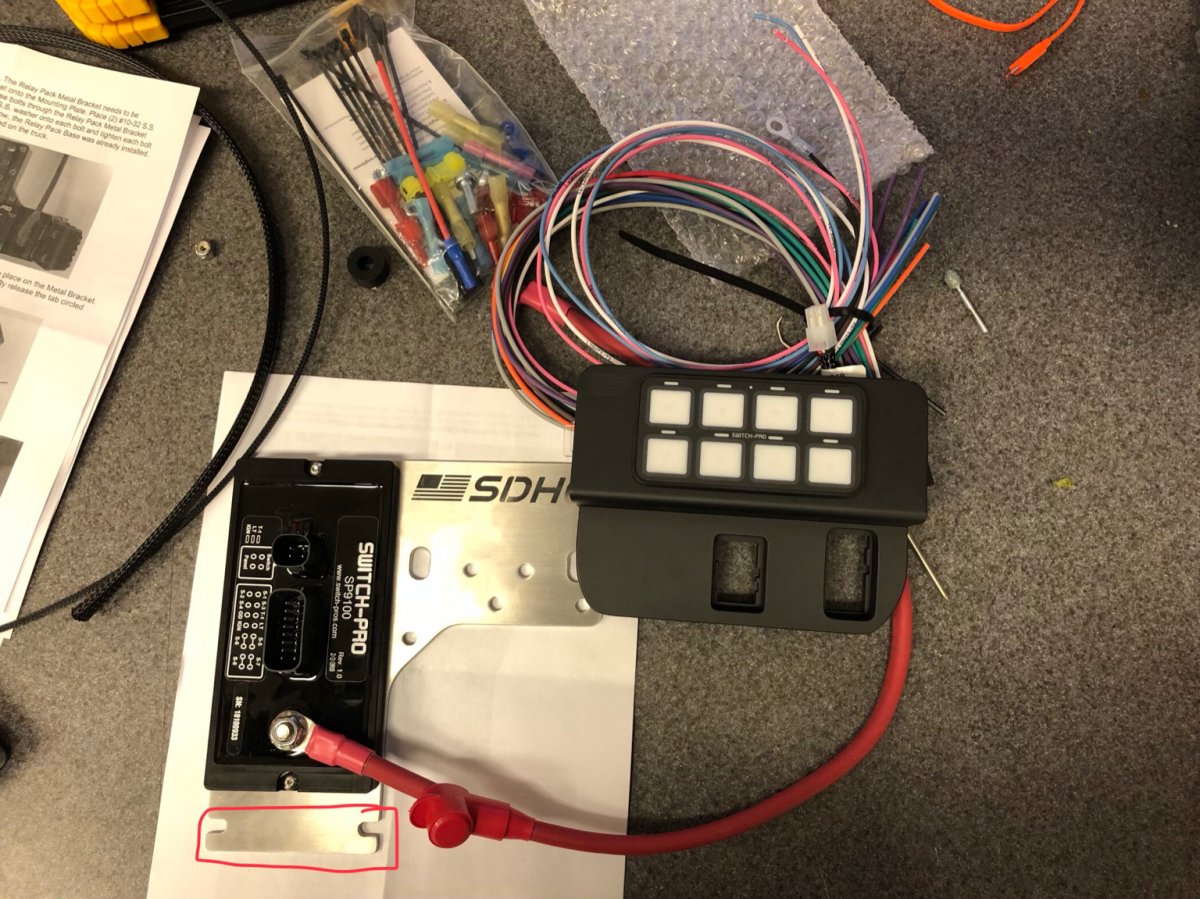

First off, due to me having crawl control, the SDHQ Mount needed a bit of modification. The highlighted area needed to be removed
I used a file to do some metal cleanup after.
Here you can see the right clearance after trimming.
Here it is mounted.
Next I prepped the dash

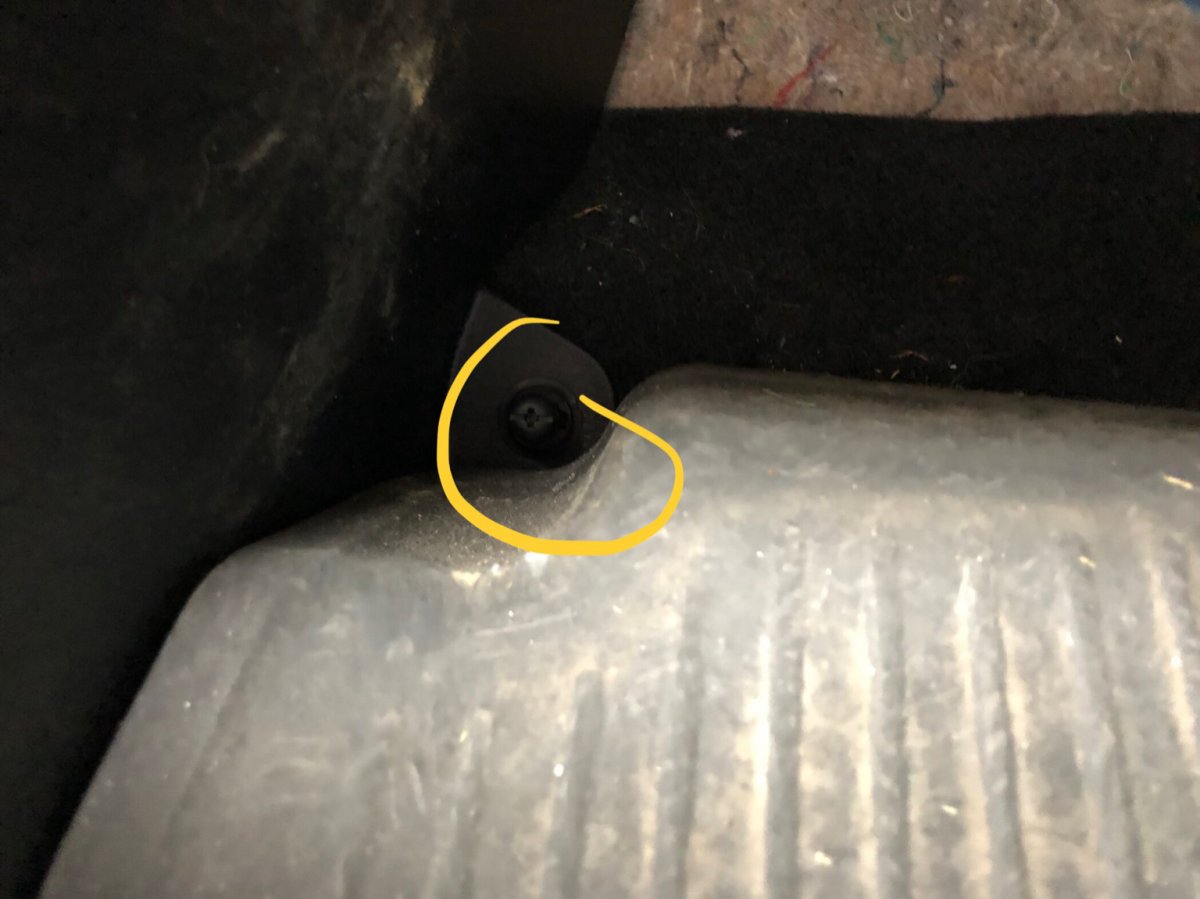

start by removing the kick panel on the left by removing this plastic nut with your fingers, then pop off the first door sill and the kick panel

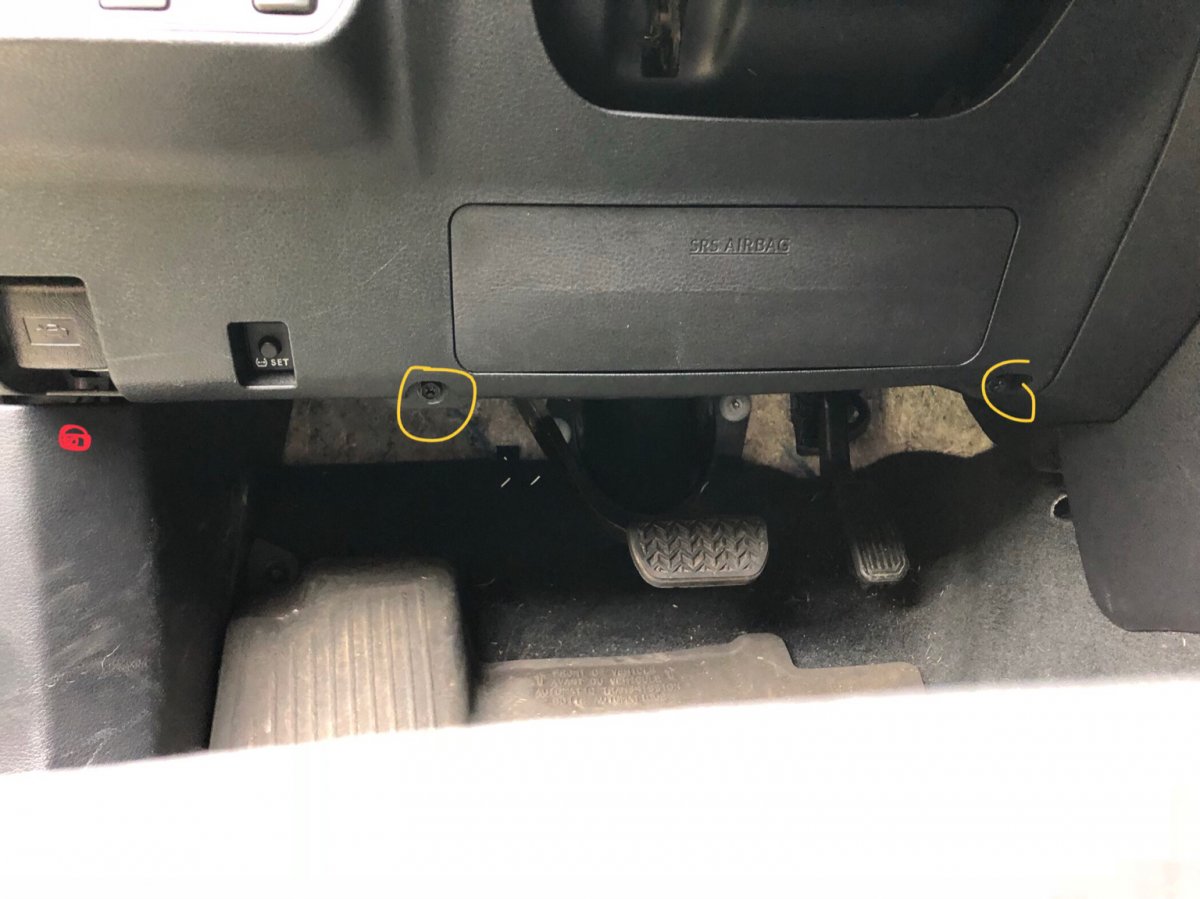

That will expose the 3 screws you will need to remove 10mm socket works great.
gently pop this lower panel out after removing the 3 screws.
View attachment 17600
Now this part will only apply if you are doing the SDHQ dash mount.

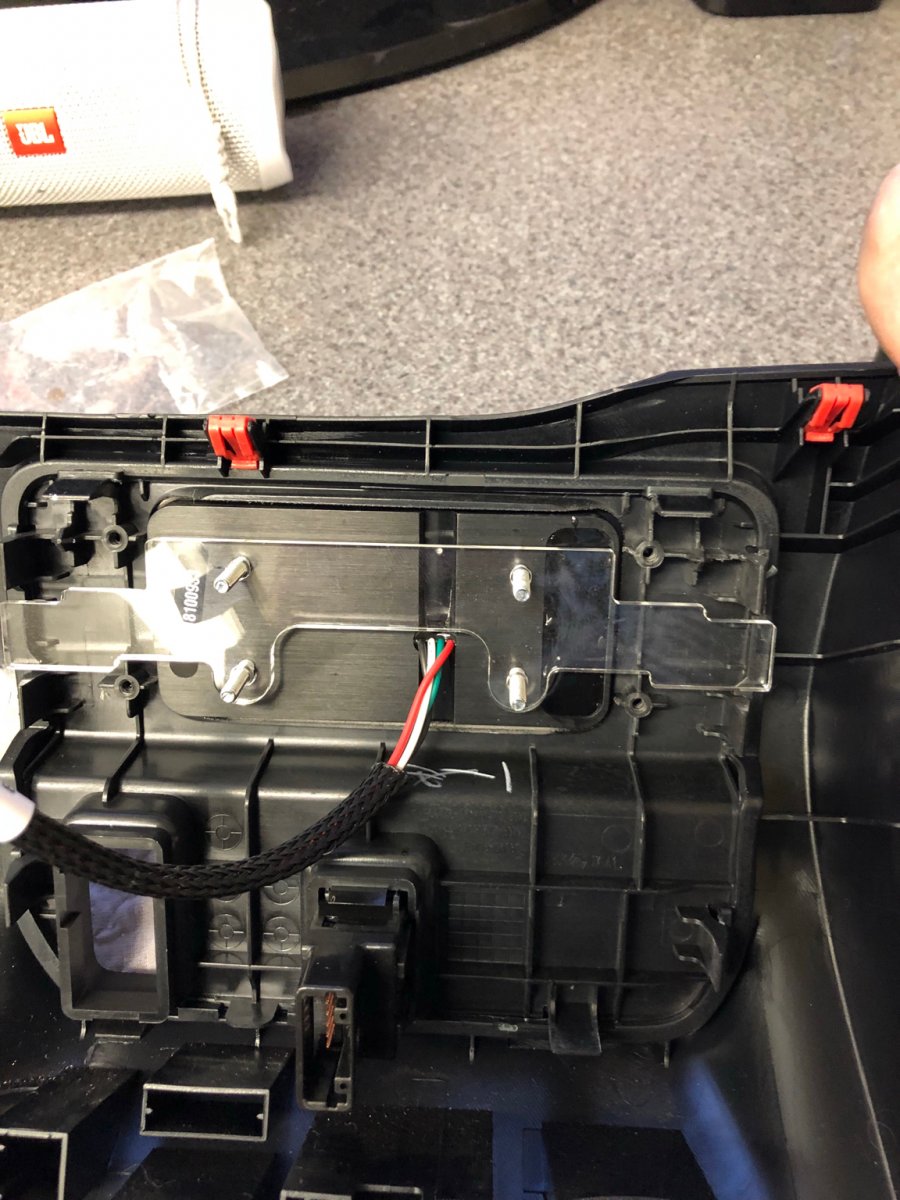

Screw in the 4 threaded studs supplied with the Switch-Pros mounting hardware and then put on the small plastic plate.

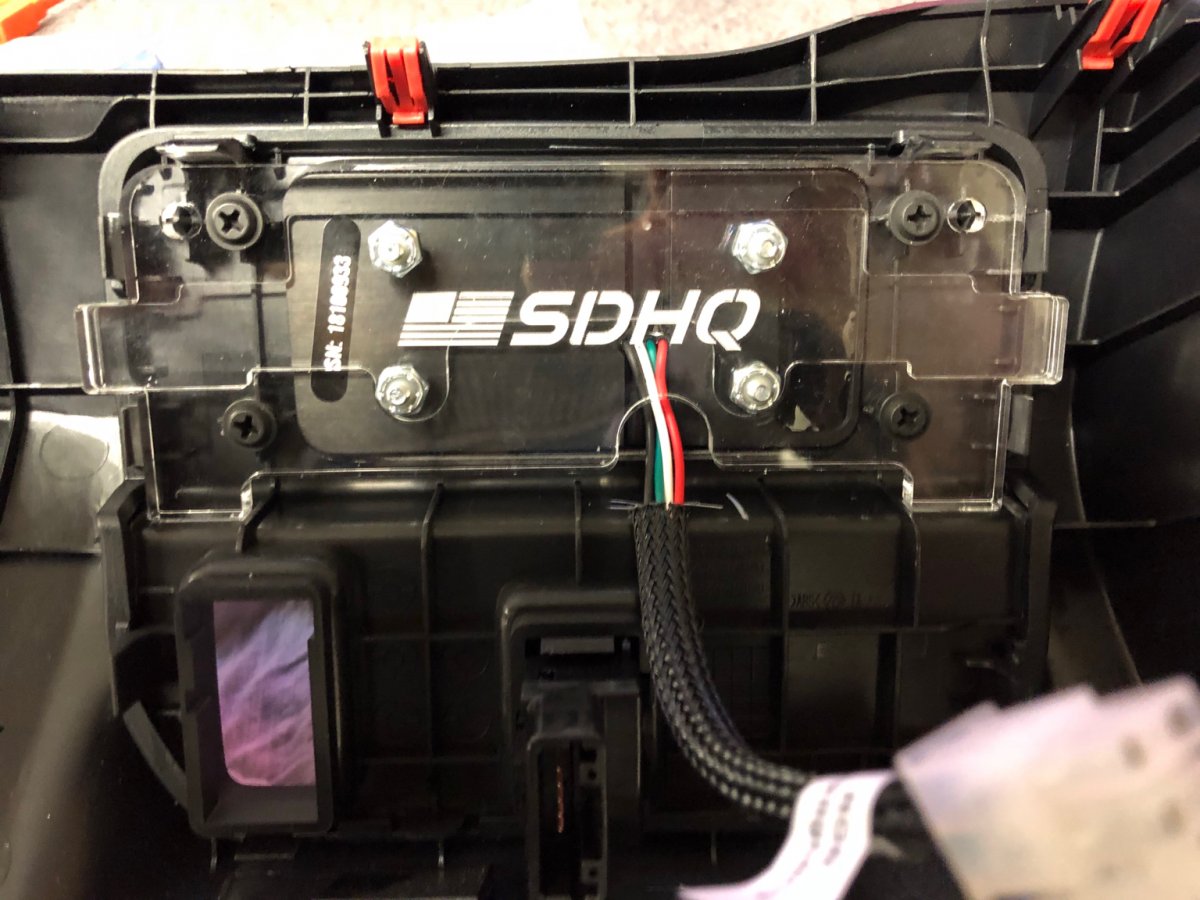

Next you will install the larger clear backing plate and install the 4 provided screws

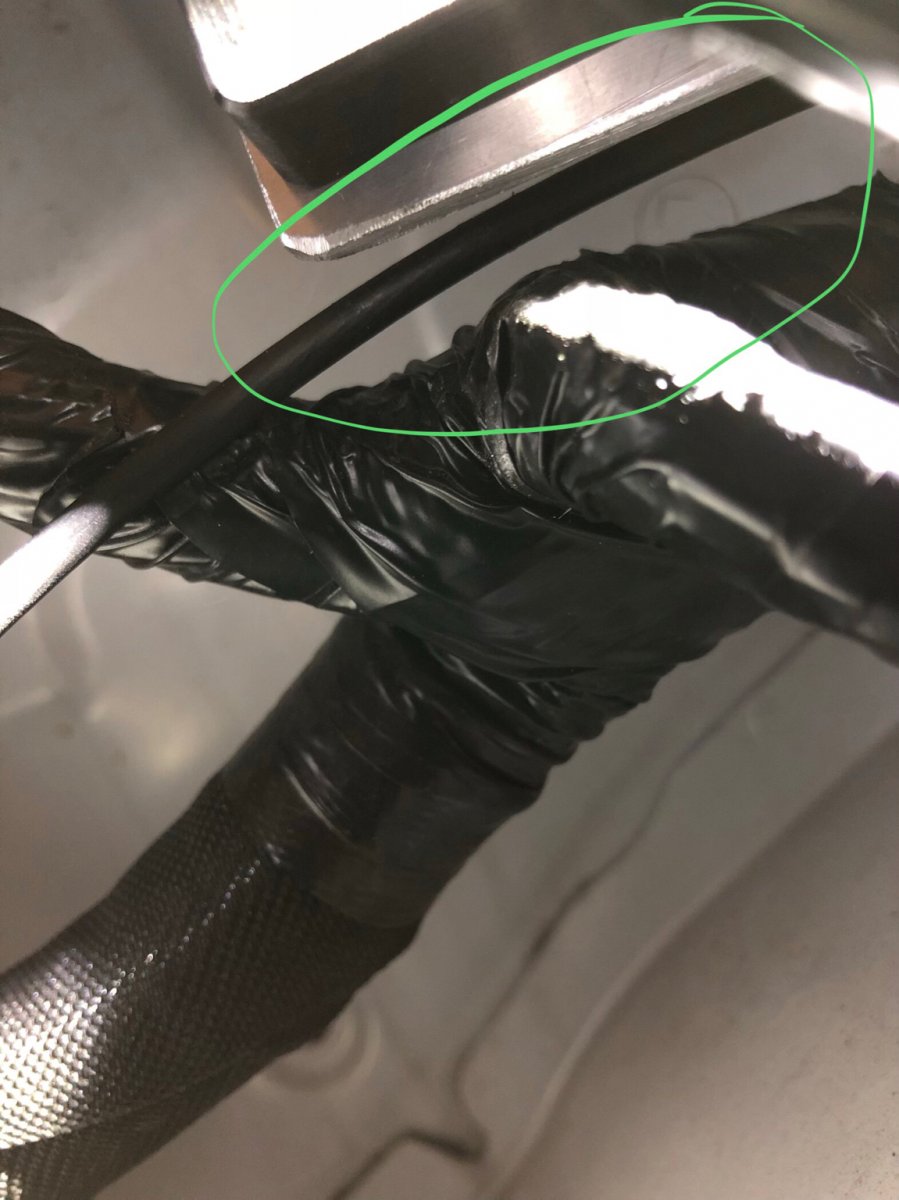

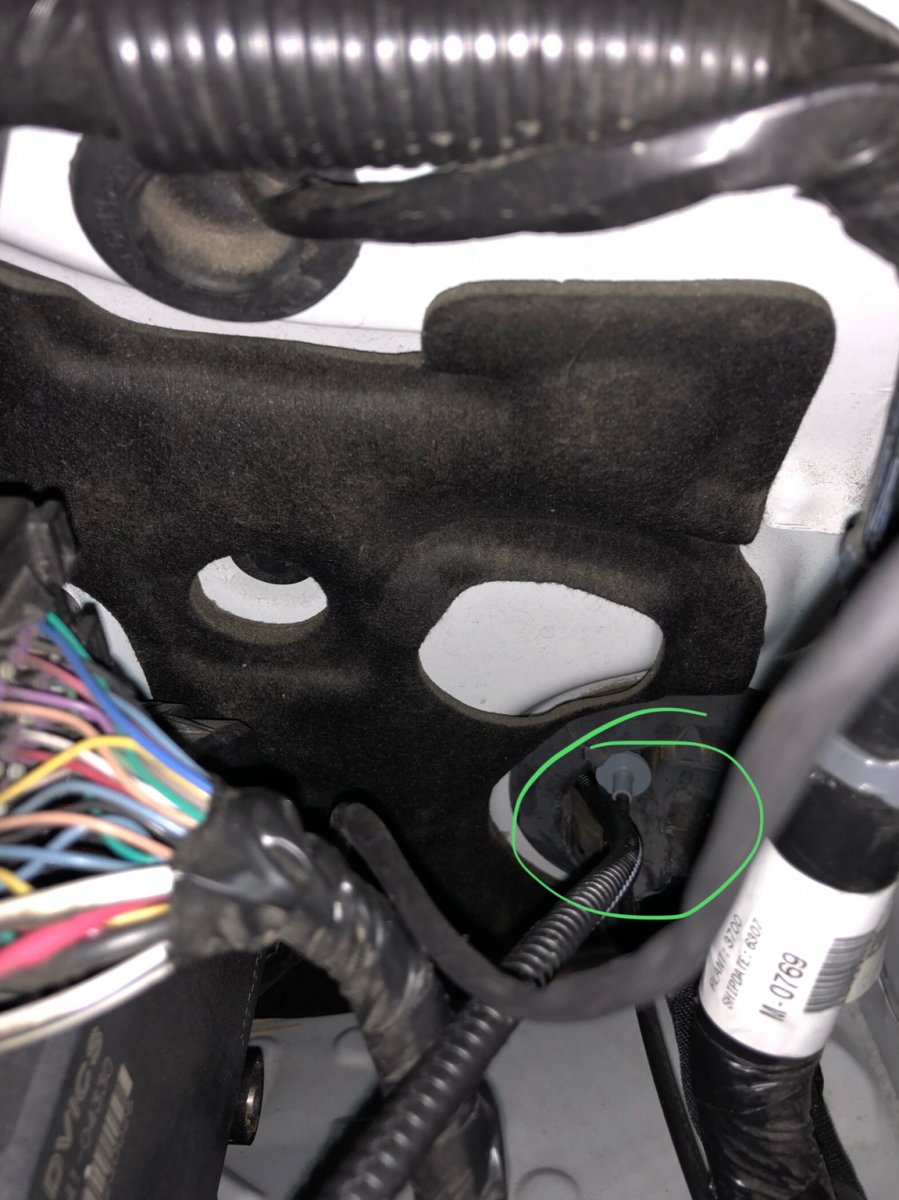

Ok so next I routed the blue ignition wire into the cab through the firewall in the harness grommet.
You’ll have to cut a slit in the grommet.
This is on the drivers side next to the brake master.

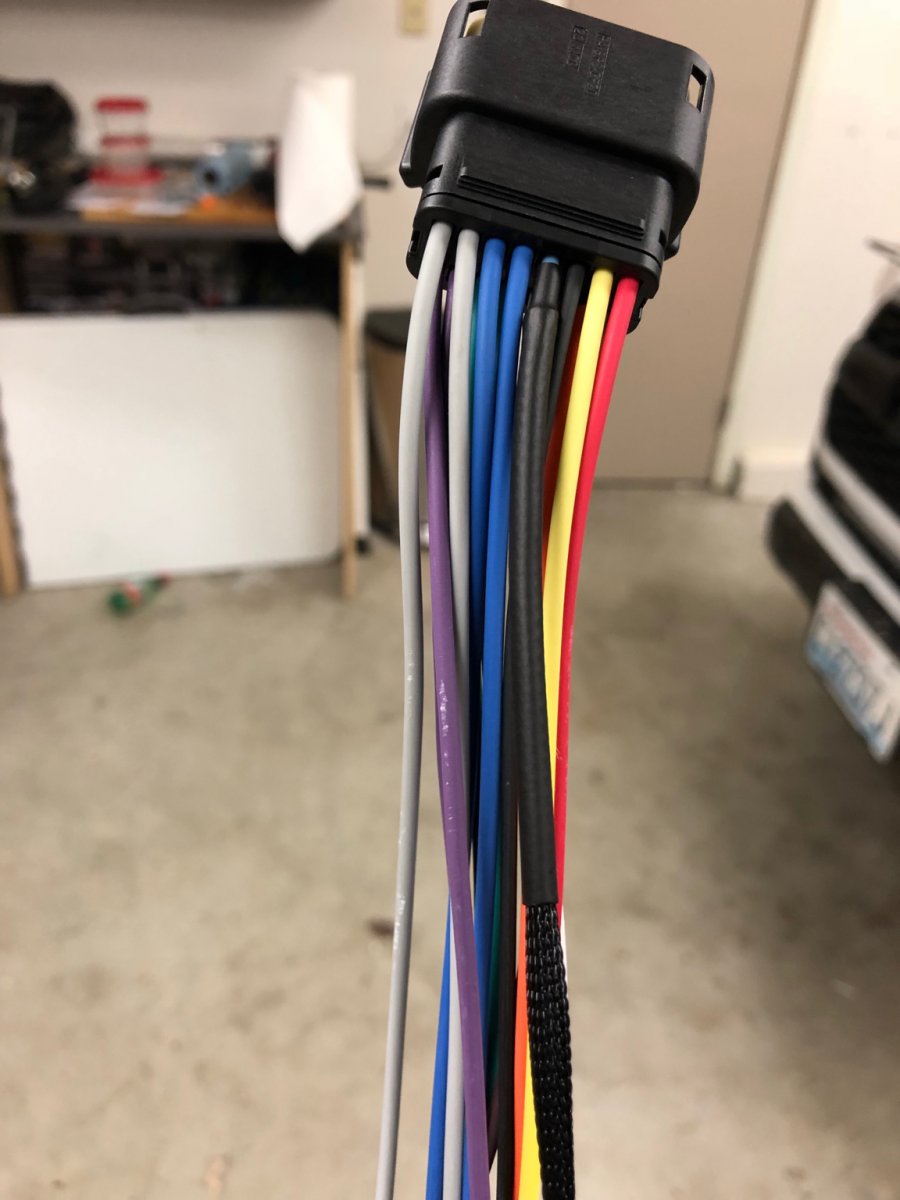

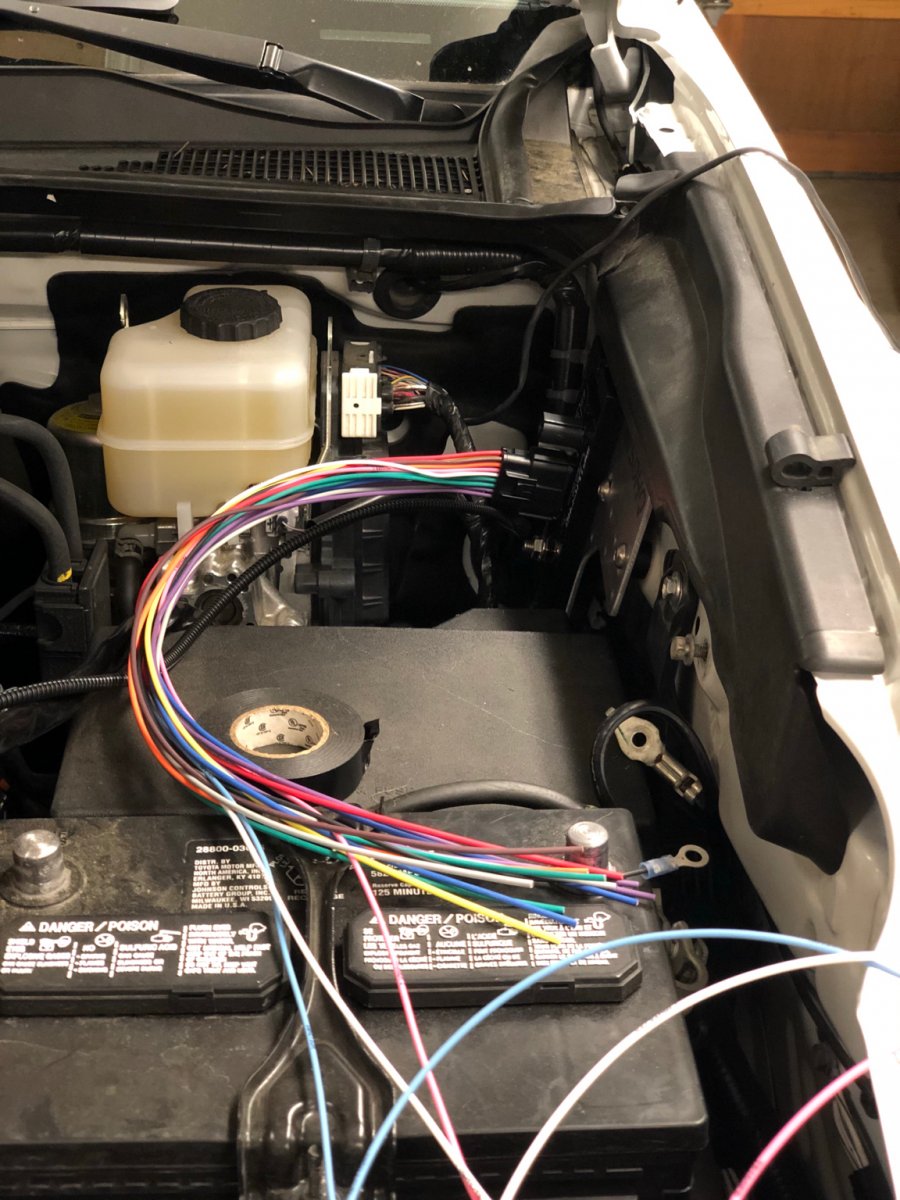

I just got a metal coat hangar and straightened it out. From inside the cab, push the hangar through the hole you created and tape the wire to the end, after it’s nice and taped on, you will pull the hangar back into the cab and the wire should follow. You will have to do this with the switch harness as well, that’s how controller will hook up. I also took some of the braided look and heat shrink and covered the wire for protection.
Now for an ignition source, I just got out my multimeter and started poking on plugs of the same gauge wire until I found one.

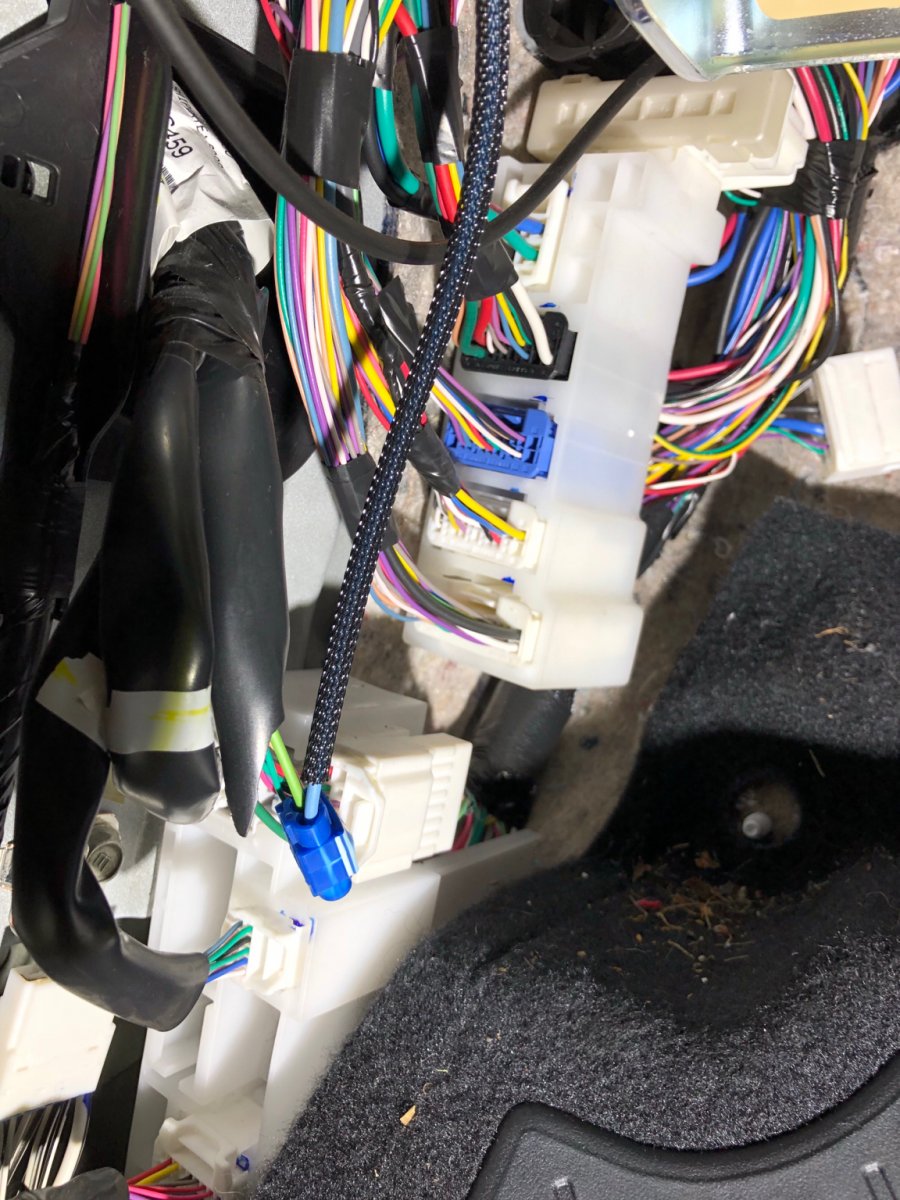

Under the kick panel on the left you will see this plug and there is a lime green wire, I just cut back some of the shielding and tapped into this wire.

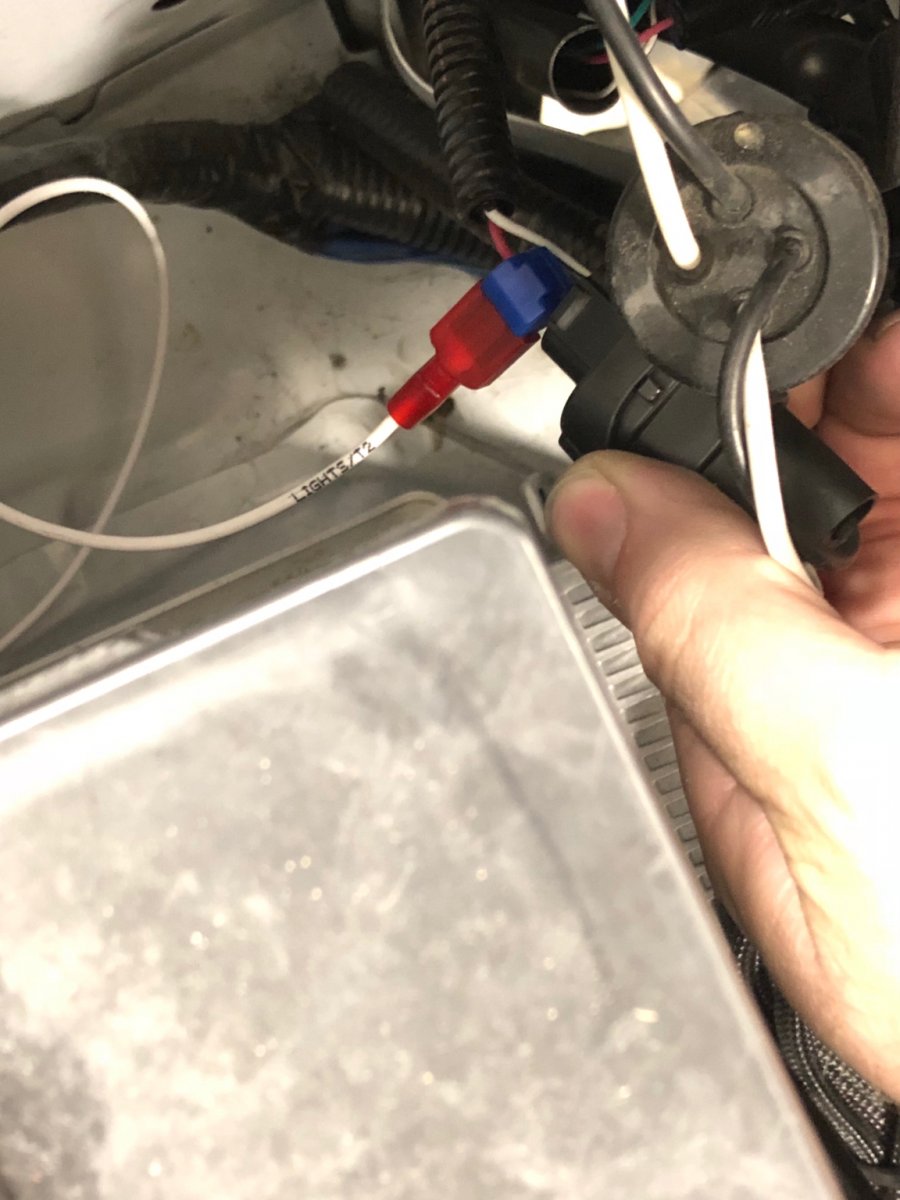

Next I had to hook up the white wire to a light source, I chose to tap into my head lights, this way when my headlights are on the panel will dim.
It’s the red wire on your low beam plug.
Now i hooked everything up and made sure I got power to the panel and it was on and functional.
Now that you have everything installed and functional, it’s time to wire your accessories. I am running a rough country 30” light bar, Baja designs squadron pro fogs for ditch lights and a ARB dual compressor.
Now it’s actually really easy. For my light bar, I cut out the relay harness and got it down to just the 2 wires. Switch 1 is a brown wire, you connect the brown to the power wire from the light bar(i soldered it) you can use butt connectors if you want. You will have to crimp on a eyelet connector to the ground wire and then just ground to a body ground.
Feel free to ask questions and I’ll do my best to answer.

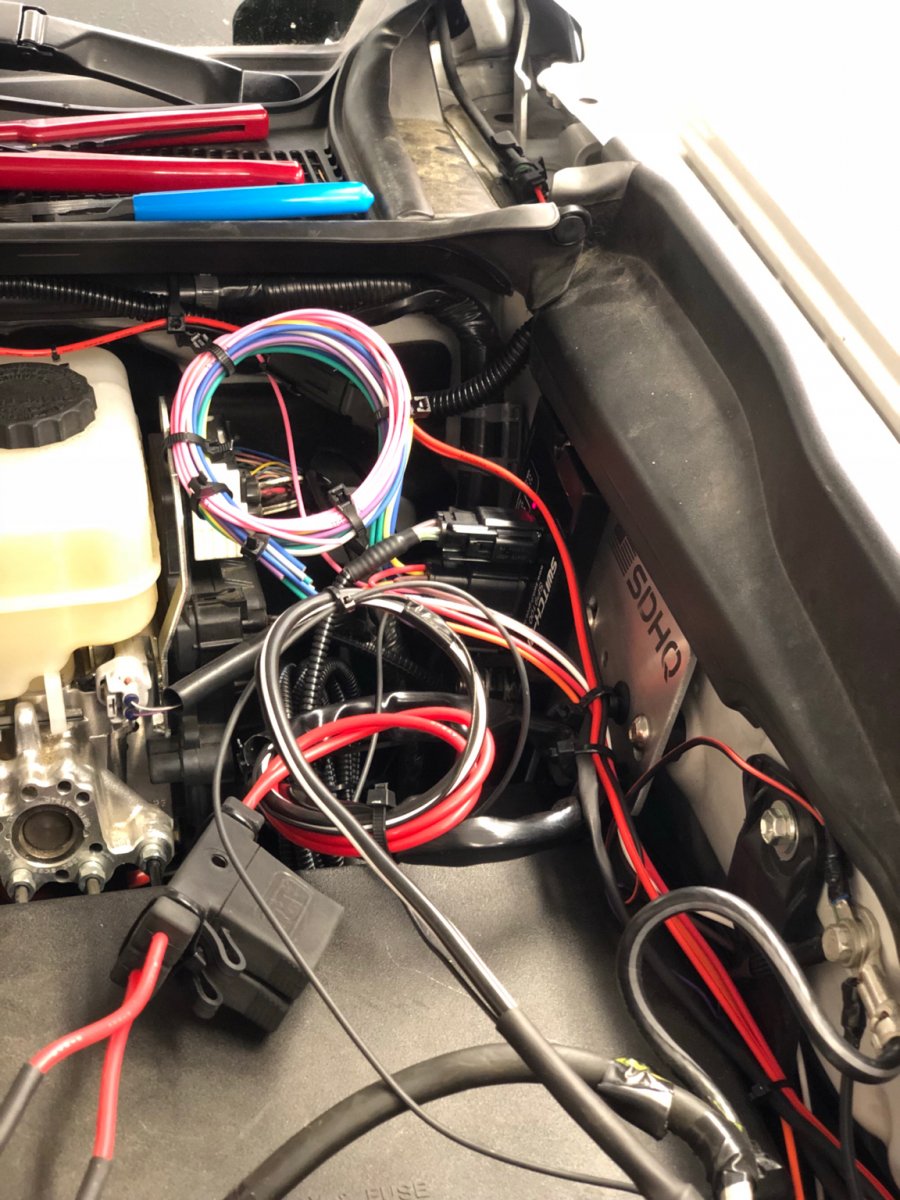

Oh and this is the mess that I still have to clean up
Just waiting on a busbar and distribution block to clean it all up.
