2013 Tacoma Trd Sport 4x4 ac/heat Fan

Discussion in 'General Tacoma Discussion' started by dawg, Jun 25, 2018.

  1. dawg

    dawg Member

    Will only work on high. Any thoughts? How difficult to replace fan / where at?

  2. Avatar

    Tacoma Forum Sign Up!

    Join TacomaForum.com Today - It's Totally Free!

    Are you a Toyota truck fan? If so we invite you to join TacomaForum.com. Our site is specifically designed for you and it's a great place for Toyota Tacoma Fans to meet online.
    Once you join you'll be able to post messages, upload pictures of your truck, and have a great time with other Toyota Tacoma fans. Whether your an old timer or just bought your Tacoma you'll find that TacomaForum.com is a great community to join. Best of all it's totally free!

    Join TacomaForum.com Today! JOIN FOR FREE

  3. whippersnapper02

    whippersnapper02 Negative Nancy

    Bad resistor. Check the wiring as well.

    OR17TRD and Bogunn like this.
  4. Scuzzy

    Scuzzy Well-Known Member

    Replacement fan is $62 and it takes 2 minutes to replace, or change the resistor for ??? (Maybe $0.50?) Passenger side, under dash, 1 wire plug and 3 bolts.

    OR17TRD and Bogunn like this.
  5. OR17TRD

    OR17TRD Well-Known Member

    That’s to much money and sounds difficult... I’d try this ^

  6. whippersnapper02

    whippersnapper02 Negative Nancy

    Super simple.

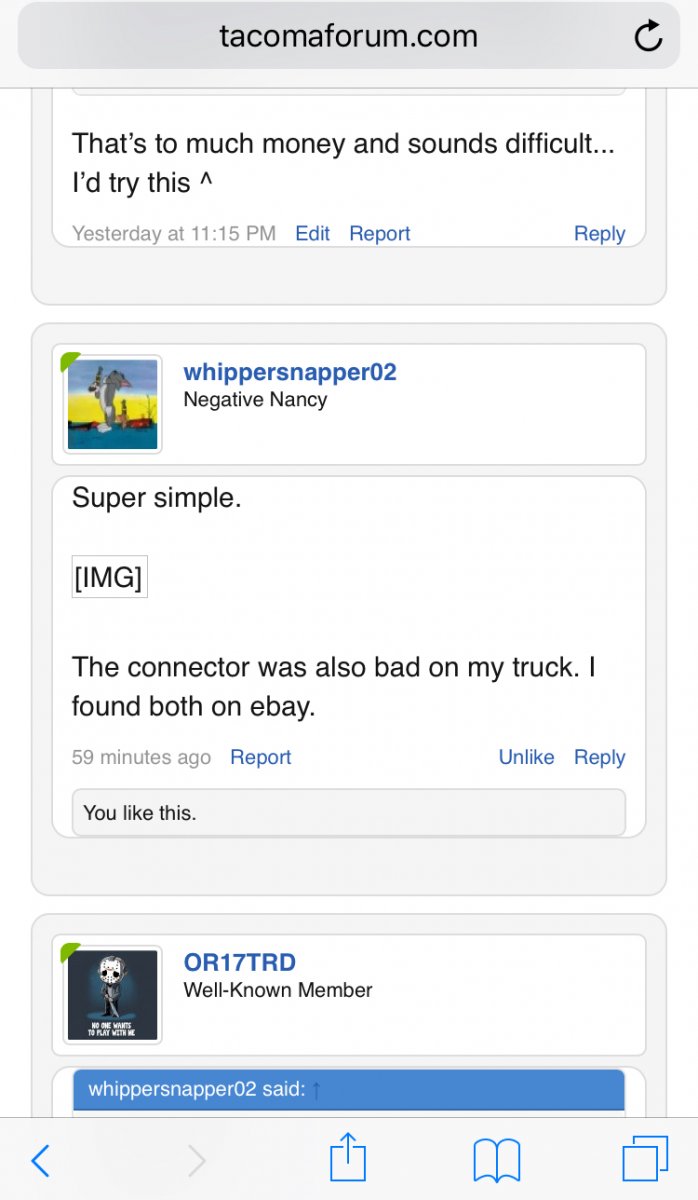

    [​IMG]

    The connector was also bad on my truck. I found both on ebay.

    Bogunn and OR17TRD like this.
  7. OR17TRD

    OR17TRD Well-Known Member

    What is the img

    Taco Caliente likes this.
  8. whippersnapper02

    whippersnapper02 Negative Nancy

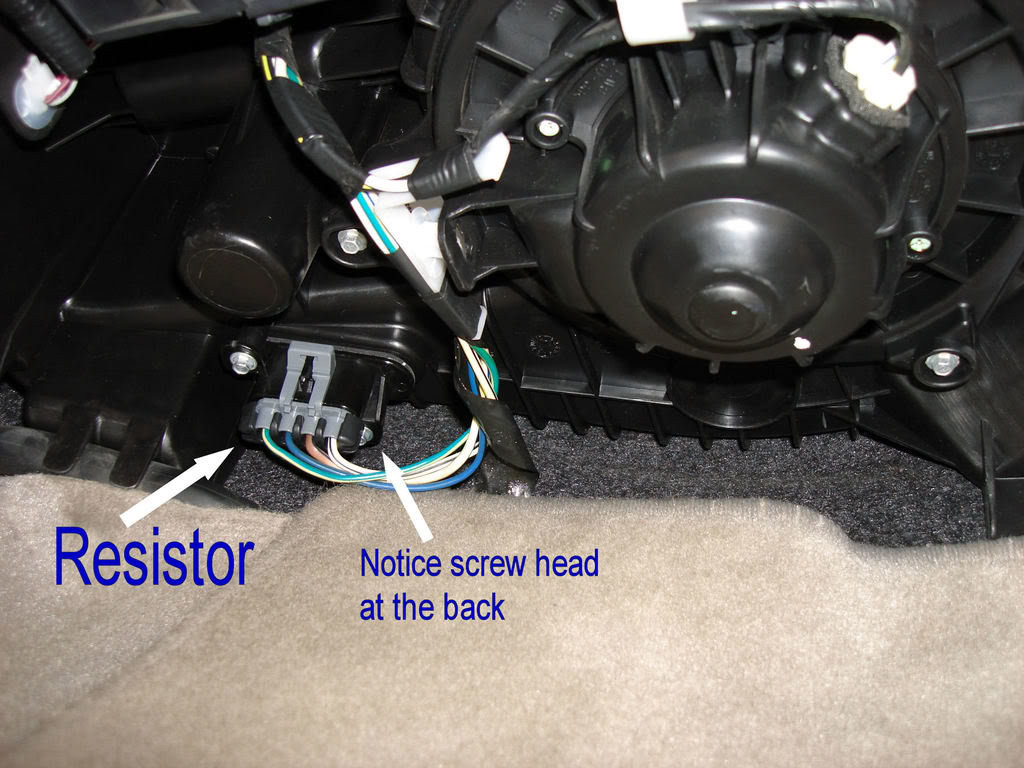

    Under the passenger side dash.

    OR17TRD likes this.
  9. OR17TRD

    OR17TRD Well-Known Member

    Oh ya... I see it now. o_O

    whippersnapper02 likes this.
  10. whippersnapper02

    whippersnapper02 Negative Nancy

    Doesn't show?

  11. OR17TRD

    OR17TRD Well-Known Member


    whippersnapper02 likes this.
  12. Bogunn

    Bogunn Well-Known Member

    I can’t see the image either. But do like Nancy said. Always start simple.

    whippersnapper02 likes this.
  13. whippersnapper02

    whippersnapper02 Negative Nancy

  14. OP
    dawg

    dawg Member

    Thanks to all. I will try the resistor /wiring first

    whippersnapper02 likes this.
  15. whippersnapper02

    whippersnapper02 Negative Nancy

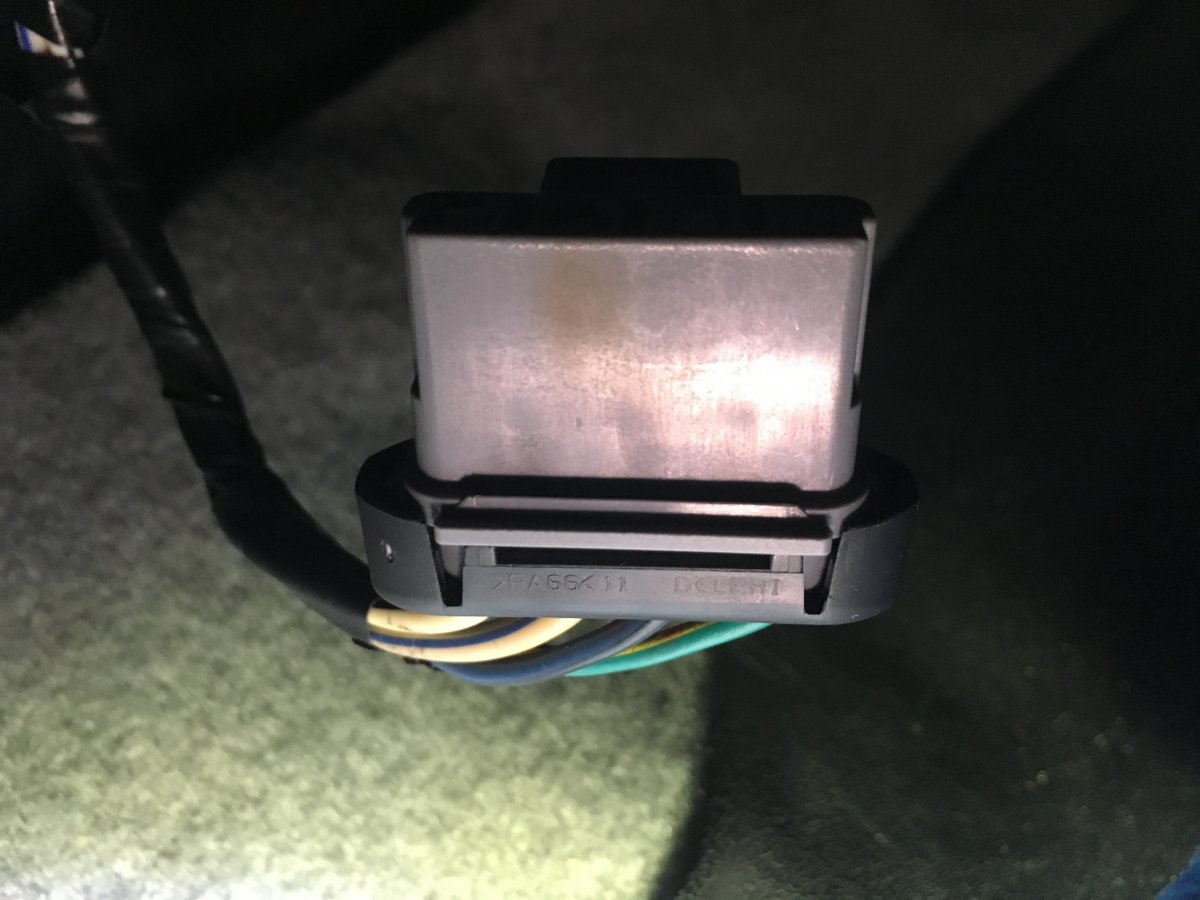

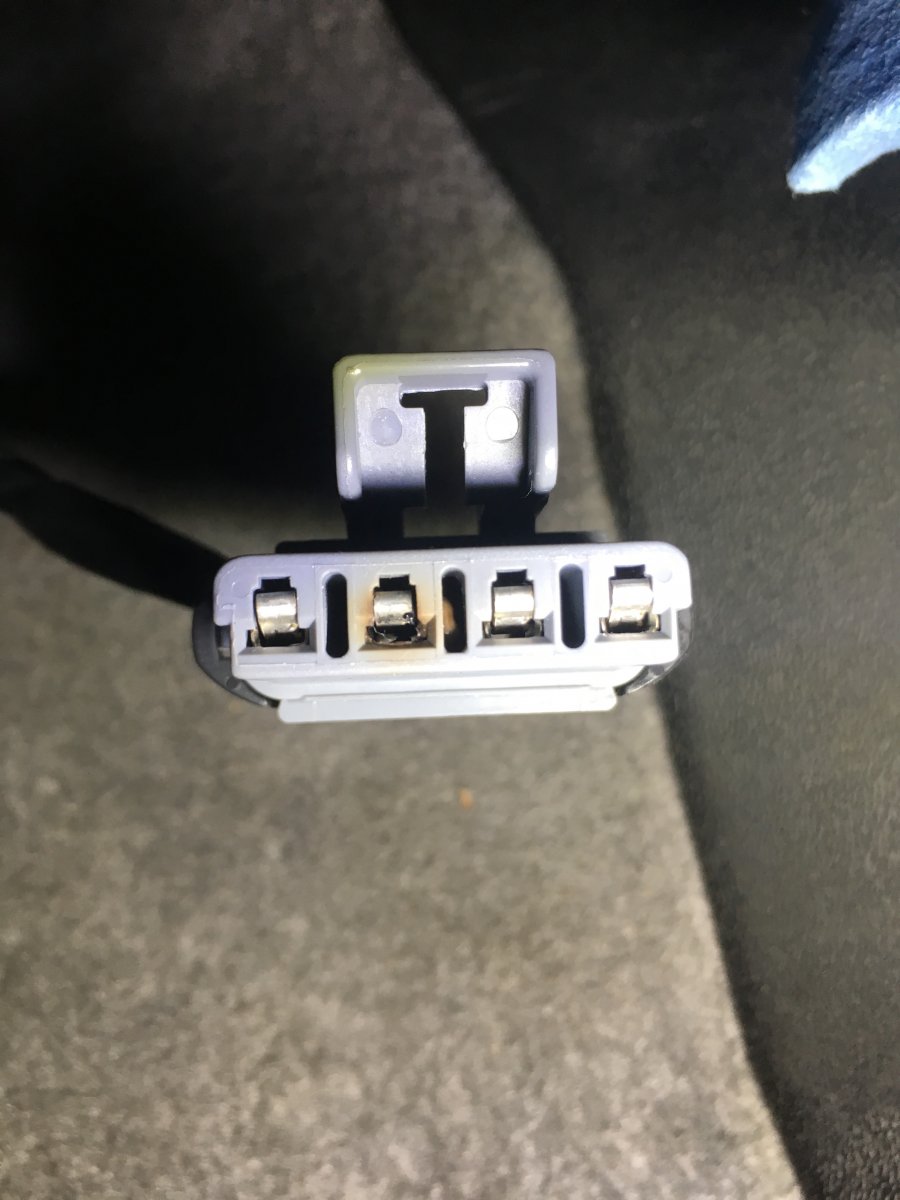

    Here's what my plug looked like:

    C4613C76-A857-4322-8B50-D625CDC71FE5.jpeg 5DD0D7E6-EA22-4328-A0AF-88065D22B663.jpeg

    My resistor may have been fine because I plugged in a new one and it still didn't work. I replaced the resistor and wiring pigtail.

  16. 17TRDTACO

    17TRDTACO Member

    Usually the resistor easy fix

  17. taters95yj

    taters95yj Active Member

    My 07 was only working on high last year and i had to replace the ac controls. There was a burnt wire and connection. Bought one used off ebay because they were like $900 from Toyota
