Help with alignment issue

Discussion in '2005 - 2015 Toyota Tacoma' started by BC Dan, Dec 6, 2018 at 2:35 PM.

  1. BC Dan

    BC Dan Member

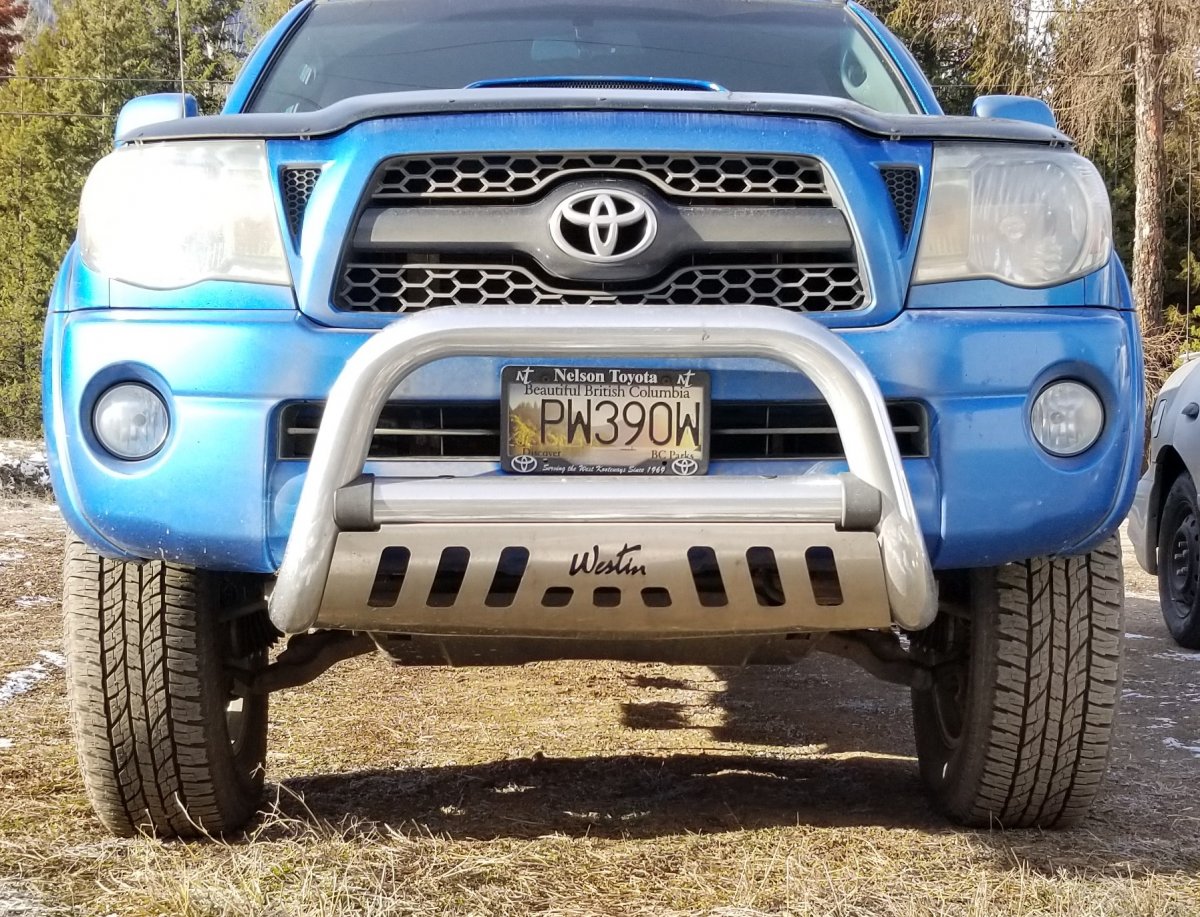

    Hi All. I've got a 3" Pro comp lift kit and ever since it was installed I've noticed an alignment issue in my front end. Please see the attached picture and you'll notice that my front camber is off. I've had it into an alignment shop but they says that they've adjusted it as far as it will go. I'm not sure if I believe them or not which is why I'm asking here. Do I need to buy special parts to fix this issue?

    FYI these are just my winter tires.

    Danny 20181206_122629.jpg

    TacoBOB77 likes this.
  2. Avatar

    Tacoma Forum Sign Up!

    Join TacomaForum.com Today - It's Totally Free!

    Are you a Toyota truck fan? If so we invite you to join TacomaForum.com. Our site is specifically designed for you and it's a great place for Toyota Tacoma Fans to meet online.
    Once you join you'll be able to post messages, upload pictures of your truck, and have a great time with other Toyota Tacoma fans. Whether your an old timer or just bought your Tacoma you'll find that TacomaForum.com is a great community to join. Best of all it's totally free!

    Join TacomaForum.com Today! JOIN FOR FREE

  3. OR17TRD

    OR17TRD Well-Known Member

    New UCA’s are probably needed. You might be just past the OEM ones for an alignment. TC makes good ones.

  4. OP
    BC Dan

    BC Dan Member

    OK. I might opt to see if the alignment shop will change them since I'm assuming it will need to be re-aligned after.
    I've noticed the truck tends to wander since the lift was done. Perhaps this will help?

  5. TacoBOB77

    TacoBOB77 Well-Known Member

    I have a 3" lift and I have stock uca one thing I seen my alignment guy do along with aligning is mess with the caster Wich I believe fixes that anyone got input on this?

    OR17TRD likes this.
  6. OR17TRD

    OR17TRD Well-Known Member

    Should help once you get can it aligned.
