JBL upgrade

Discussion in '2016 + Toyota Tacoma' started by Gottorq, Mar 28, 2021.

  1. Gottorq

    Gottorq Member

    Anyone have the JBL premium sound that has swapped out speakers? What did you go to and how do you like them?

    Cape taco likes this.
  2. Avatar

    Tacoma Forum Sign Up!

    Join TacomaForum.com Today - It's Totally Free!

    Are you a Toyota truck fan? If so we invite you to join TacomaForum.com. Our site is specifically designed for you and it's a great place for Toyota Tacoma Fans to meet online.
    Once you join you'll be able to post messages, upload pictures of your truck, and have a great time with other Toyota Tacoma fans. Whether your an old timer or just bought your Tacoma you'll find that TacomaForum.com is a great community to join. Best of all it's totally free!

    Join TacomaForum.com Today! JOIN FOR FREE

  3. rickc5

    rickc5 Member

    I'm going to follow this thread as I have the JBL in our truck and I sure feel that Toyota has done a really poor job with the speakers. We also have a Lexus RX350 with the Mark Levinson sound system, which sounds fantastic in comparison. I know Toyota doesn't wish to mess up Lexus sales by putting superior sound systems in their vehicles, but come ON--surely they can do better than the current offerings. However, I've read that the wiring for the JBL system is much more complex that the standard system, but not being an audiophile, I can't say that I know why.

    Cape taco likes this.
  4. OP
    Gottorq

    Gottorq Member

    One thing is that the JBL system is that it uses low impedance speakers, so if you replace them, you need to make sure that you replace them with speakers of the same impedance, or you will lose volume.

    Cape taco likes this.
  5. noveske

    noveske New Member

    I'm doing this now. 2019 with the JBL Premium.
    Just ordered.

    JBL GX9638 - 6"x9" - 2.3Ω
    JBL GX328 - 3.5"- 2.3Ω
    JBL GX628 - 6.5"- 2.3Ω
    Rockford Fosgate - P3SD2-8 - 2Ω

    I'll probably do a writeup or something over on Tacomaworld. Don't see too much on it and I've been following JBL Premium options for a while now. I'm trying to figure out if there are connectors for the speakers or if they are directly soldered.

    I know a few have swapped the subs to P3SD2-8. One went the Polk-Audio-MM-842-DVC route. He did a write up on installing the GX302 into the dash.

    Another setup I was considering was PowerBass.

    XL-844D - 2Ω wired parallel.
    OE-693 6x9" - 2Ω
    OE-6C 6.5" - 2Ω

    Last edited: Mar 29, 2021
    Cape taco likes this.
  6. rickc5

    rickc5 Member

    Mr. Noveske, please do us a favor and let us know how your speaker swap turned out, and if it was good, then please add a link to your writeup on TW. Of course, if the operation was not successful, we need to know that too. Thanks in advance.

  7. noveske

    noveske New Member

    I will. Still waiting on them to show up and get an actual answer on what connectors. No one actually posted the actual connector parts number. I've searched everywhere.

  8. noveske

    noveske New Member

    [​IMG]

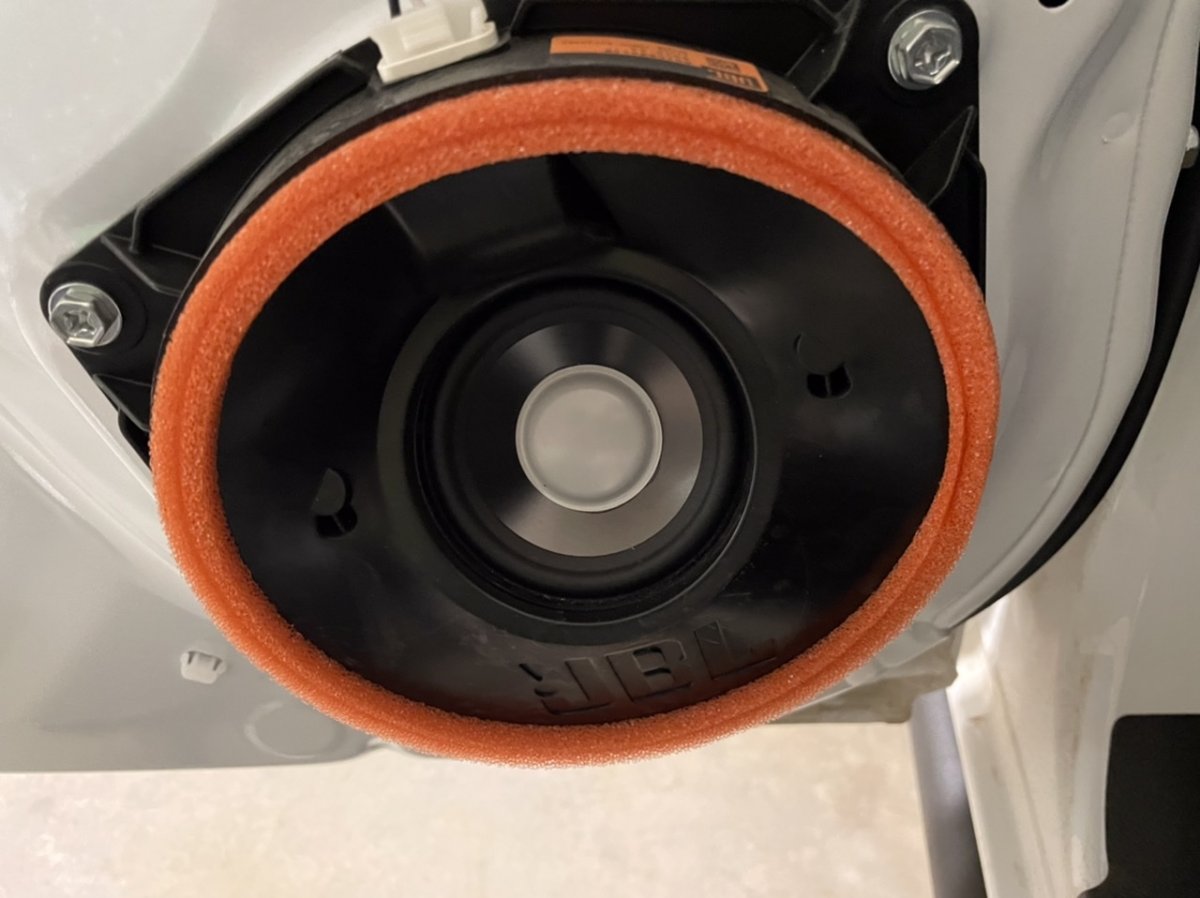

    This stuff arrived. Now just waiting on the adapters, silicone baffles and connectors to try and avoid cutting the factory wiring. Hope this isn't a thread jacking. Not my intention. Just don't see many JBL Premiums being upgraded. I know that it won't be a crazy improvement, but I'm hoping for a little clarity and less distortion. Also have a bunch of NOICO sound deadening liner around. Planning on giving this all a go soon. Waiting on the stuff above and door panel clips. Ordered some just in case and also hoping it would keep things more secure. Just have to remember to swap the door handles out for all black as well. Just gotta knock out the roof rack install first. I know there is a guy on TW that did the same setup but with different Polk sub. I think he also went with GX602 and GX302. I believe the GX628 and GX328 are just the updated versions.

    Cape taco and Scott Wyman like this.
  9. OP
    Gottorq

    Gottorq Member

    I don’t mind if you jack the thread, we can always use more info on these kind of projects. I decided to go with the easier 4 ohm components listed below. Leaving the woofer as is for now. Mainly went this route due to having all the connector adapters for these (Crutchfield).
    Focal ICU-165. Front doors
    Focal RCX-165. Rear doors
    Kicker 47KSC2704. Dash

    Scott Wyman likes this.
  10. OP
    Gottorq

    Gottorq Member

    Noveske, did you check with Crutchfield on ordering just the adapter harnesses for the JBL? I think the p/n is Metra 72-8104, as long as your speakers are just the male spade style connectors.

    Scott Wyman likes this.
  11. noveske

    noveske New Member

    Scott Wyman likes this.
