Wheel offset

Discussion in '1995 - 2004 Toyota Tacoma' started by agcatman, Nov 4, 2018.

  1. agcatman

    agcatman Member

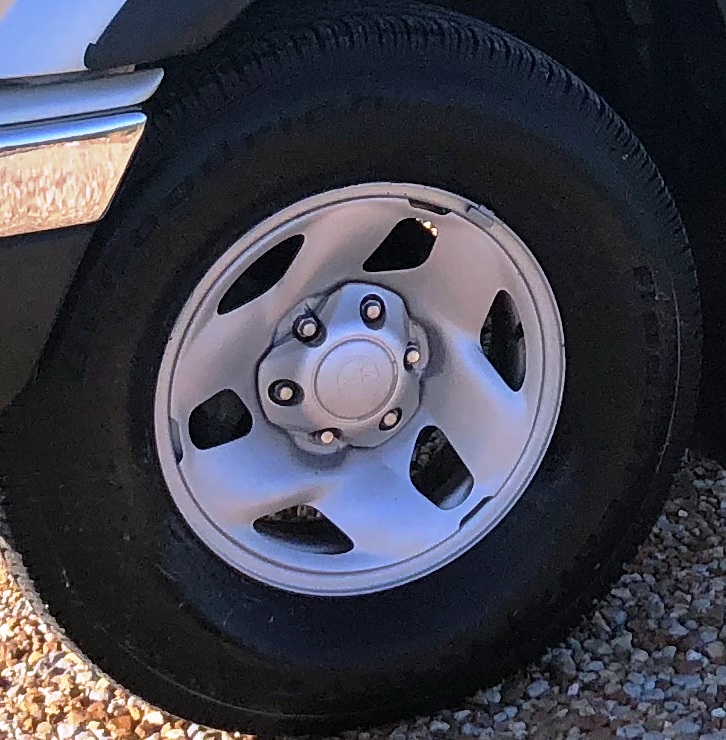

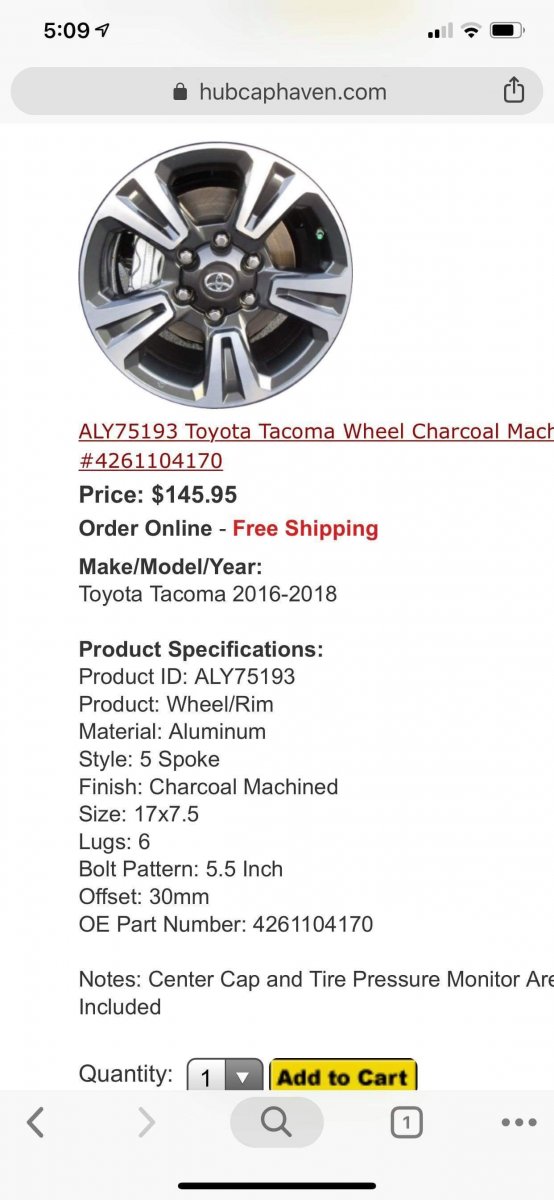

    Hey guys, I have a 2002 Tacoma, with basic painted steel wheels. The truck calls for a wheel with a -4 to 20mm offset. I bought some 18' Tacoma wheels with a 30mm offset. Lug pattern is correct. Has anyone added these newer wheels using spacers or should I just sell them and start over.


    Attached Files:

  2. Avatar

    Tacoma Forum Sign Up!

    Join TacomaForum.com Today - It's Totally Free!

    Are you a Toyota truck fan? If so we invite you to join TacomaForum.com. Our site is specifically designed for you and it's a great place for Toyota Tacoma Fans to meet online.
    Once you join you'll be able to post messages, upload pictures of your truck, and have a great time with other Toyota Tacoma fans. Whether your an old timer or just bought your Tacoma you'll find that TacomaForum.com is a great community to join. Best of all it's totally free!

    Join TacomaForum.com Today! JOIN FOR FREE

  3. OR17TRD

    OR17TRD Well-Known Member

    They should be fine. Is your 2002 a 2.7L?, 3.4L?, 2wd prerunner?, 4wd?
    Any way the stock wheels are going to be somewhere between +15 to +40 offset and the 3rd gen sport wheels are +30 offset and will work with up to 265/70/17 tires. You should be able to mount them and run them no problems. Post pictures and let us know what you do.

    kp.taco likes this.
  4. OP
    agcatman

    agcatman Member

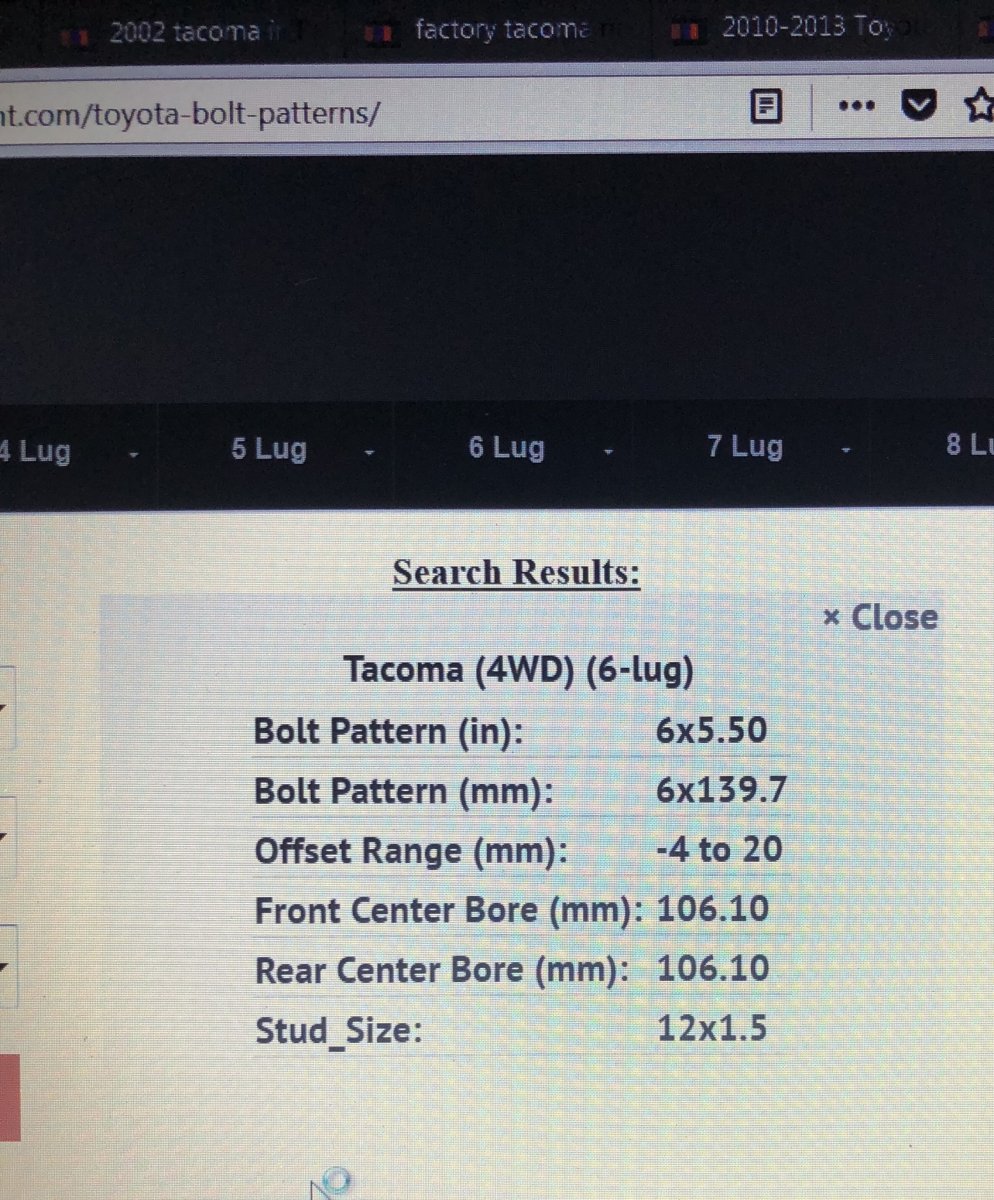

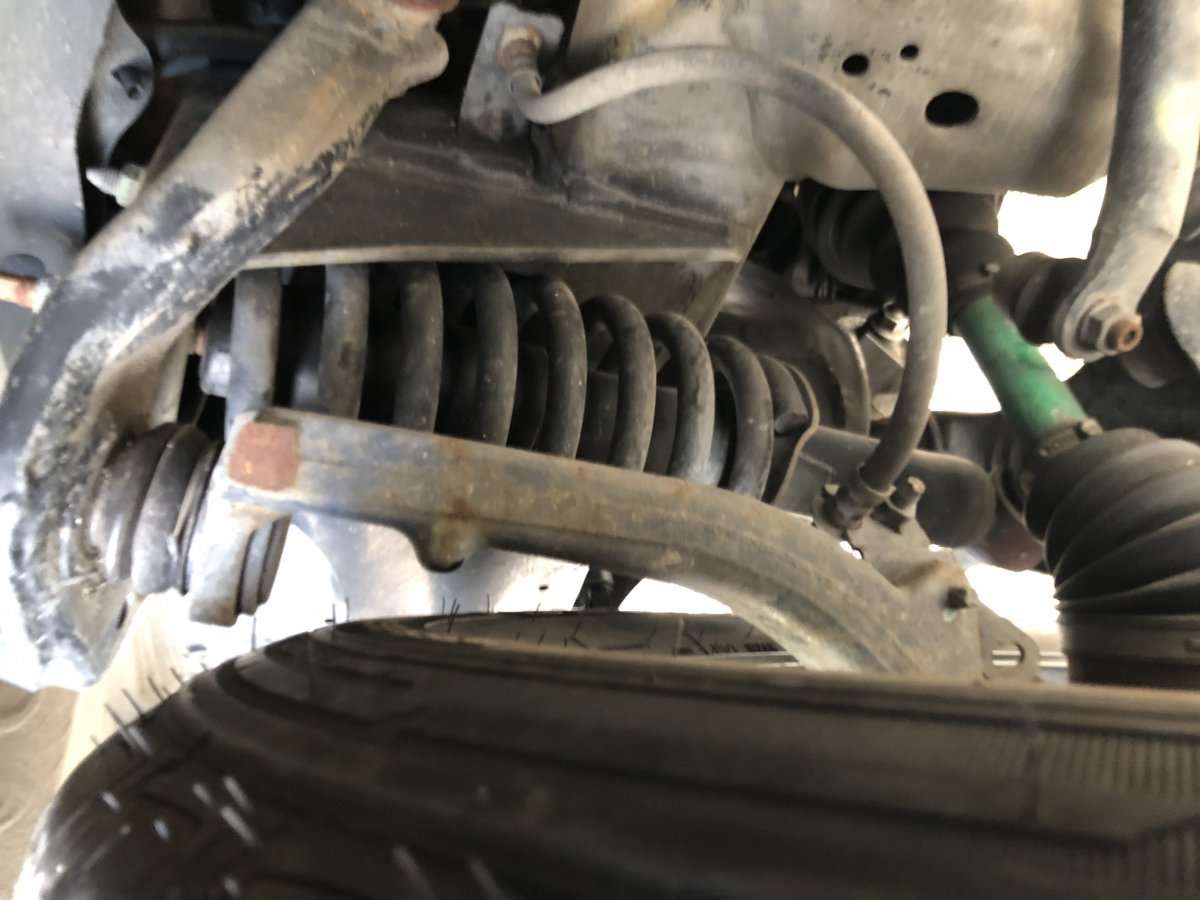

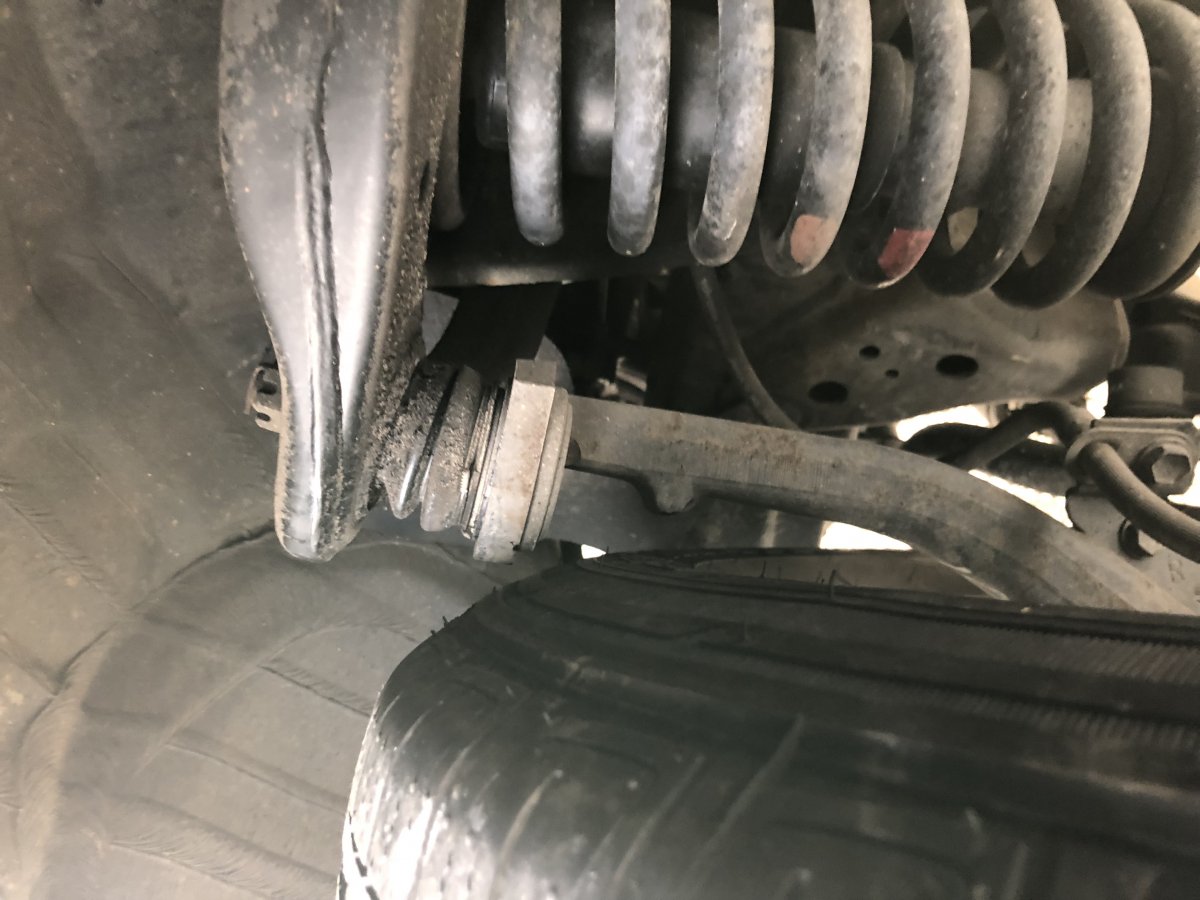

    It is a 3.4, 4wd. It’s just the info I got offline said -4 to 20mm and the sport wheels I bought shows 30mm. The tire dimensions are the same as my 16” I have on the truck now. The offset puts the tire really close to the top A arm/ball joint. Not enough room to pass my hand. I should have taken a picture. D709A3CE-E2A0-481E-940C-0AE478DEE168.jpeg C4D86ABD-4444-4C7F-B64A-09F5923EC0B0.jpeg

  5. OR17TRD

    OR17TRD Well-Known Member

    Should be fine. I’ve seen lots of first gens with 3rd gen wheels on them 265/65/17 tires are ok.

  6. OP
    agcatman

    agcatman Member

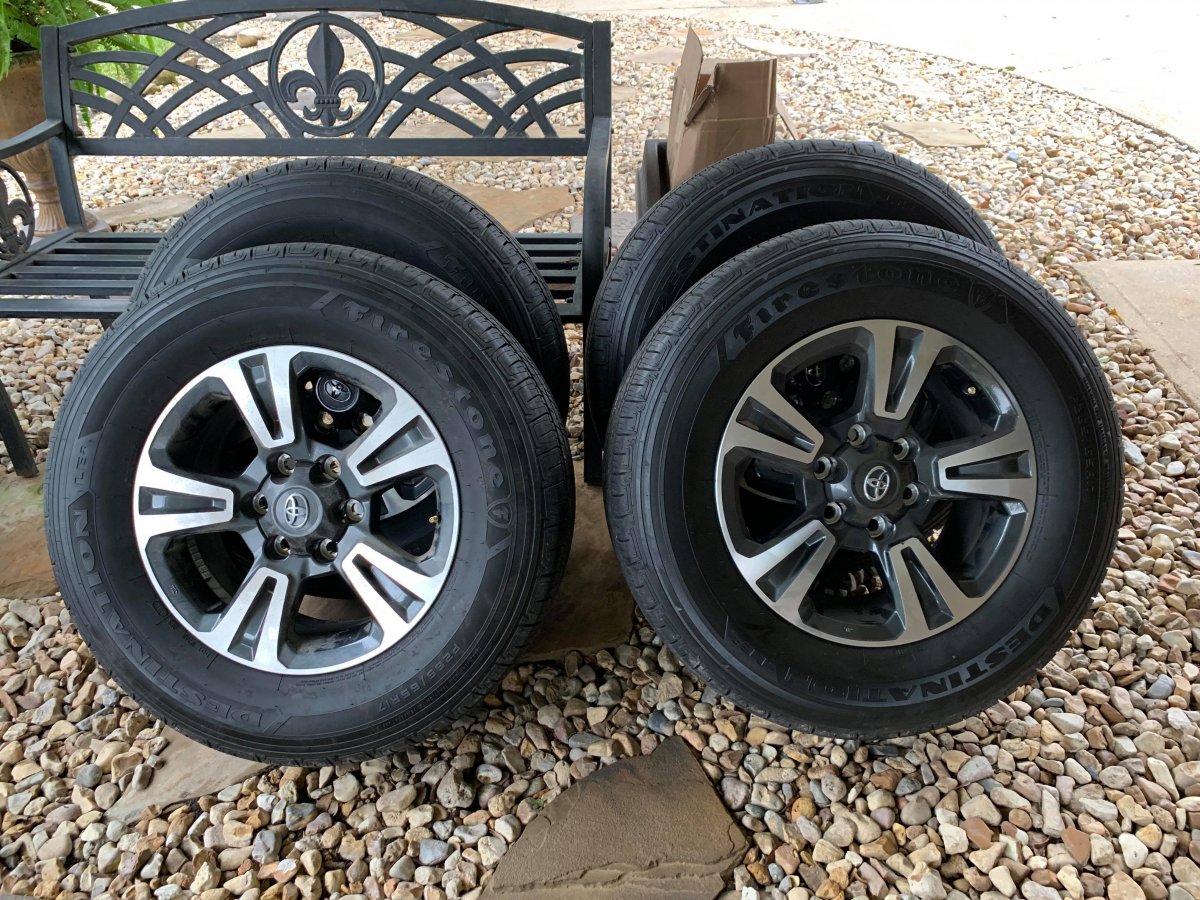

    455E9392-FFC8-4A7F-8984-06F47ED5C255.jpeg 69BF5680-EA84-4231-8825-0954B96FF136.jpeg Here you go! These are the 17s

  7. OR17TRD

    OR17TRD Well-Known Member

  8. OP
    agcatman

    agcatman Member

    Test drove for about 10 miles. I don’t see any rub marks. I’m thinking the A arm/ball joint move mostly with the tire/wheel so it shouldn’t rub.

    Crawdad and OR17TRD like this.
  9. OR17TRD

    OR17TRD Well-Known Member

    Yep you should be fine... picture of the taco with the wheels on? :)

    kp.taco likes this.
  10. kp.taco

    kp.taco Well-Known Member

    In the profile pic

  11. Crawdad

    Crawdad Well-Known Member

    Looks great!

  12. OR17TRD

    OR17TRD Well-Known Member


    kp.taco likes this.
