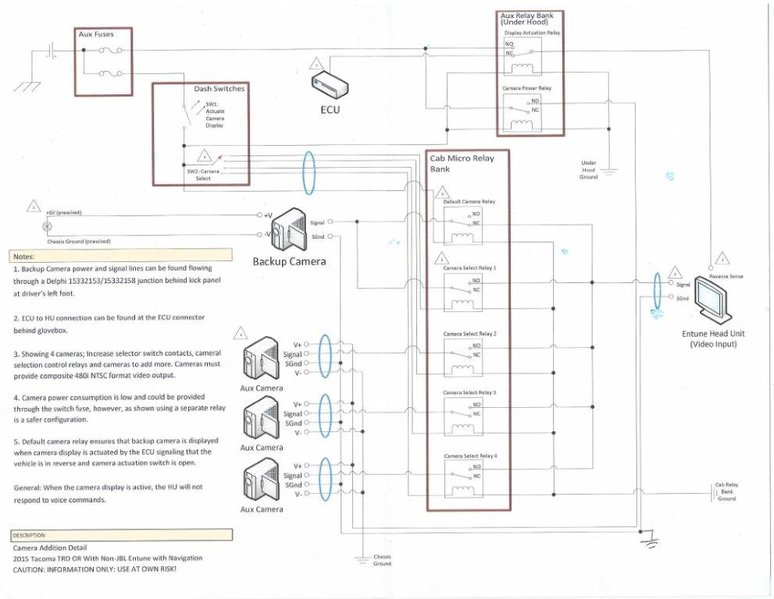

Finally got to this -- added 3 cameras today, patched through the Entune display through a bank of relays. Here's the electrical schematic, I started with. There were a few minor alterations along the way...
scan0003-jpg.761915

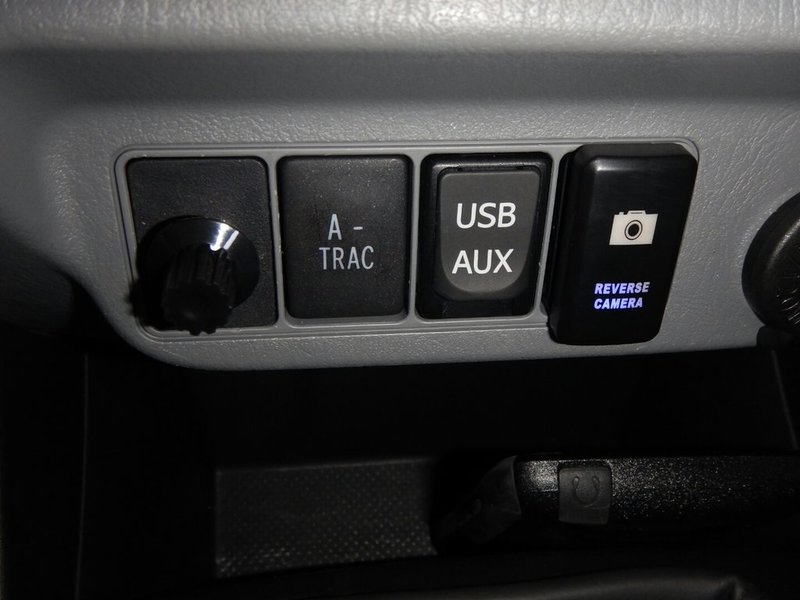

There are two switches added. One is the on/off which trips a relay to power the cameras, trips a relay to put 12 volts to the HU to toggle to camera display, and also provides power to a 6-position selector switch that triggers a relay bank to pick the desired camera to display. You will note that the backup camera runs through a NC on relay 1 which cuts out if the on/off switch is off to make sure that putting the truck in reverse, you get the backup camera.
dscn0115-jpg.761919

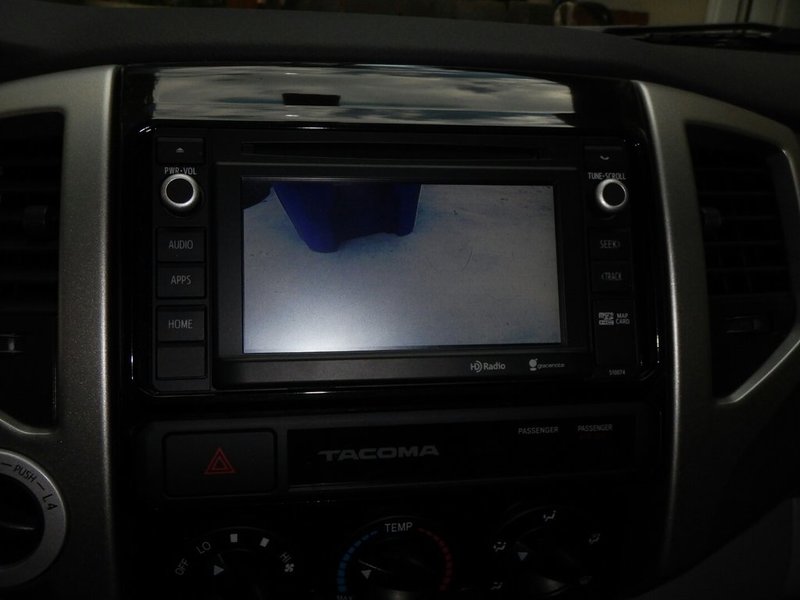

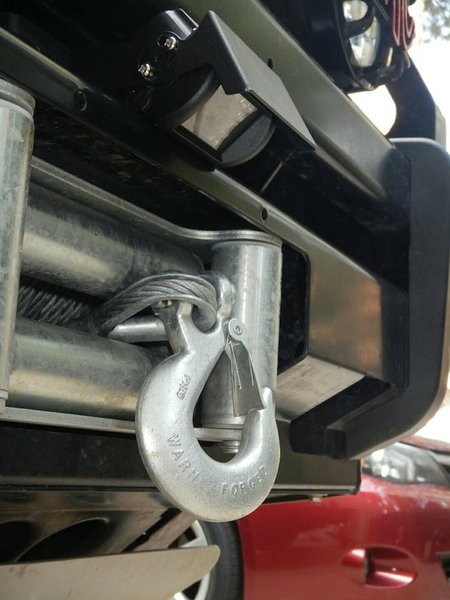

The cameras I added are one on the front looking pretty much down.
dscn0108-2-jpg.761916

dscn0116-jpg.761926

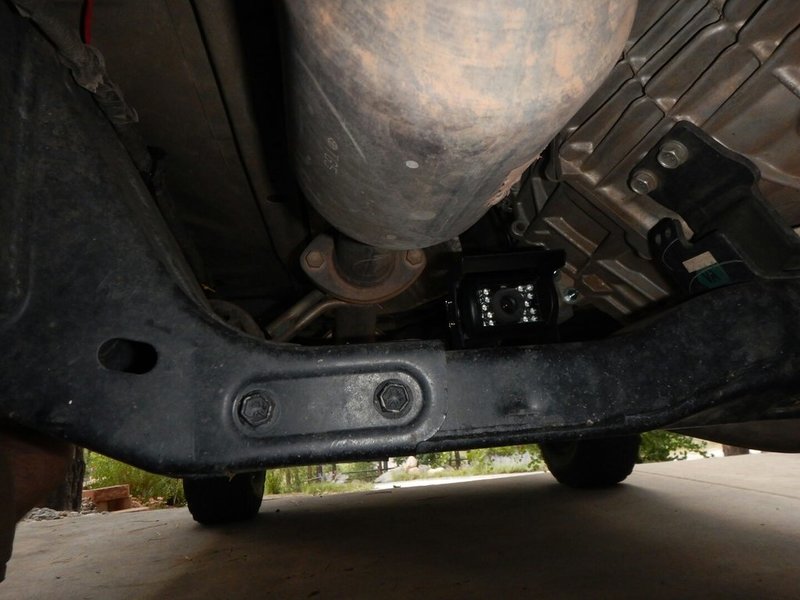

One near the transfer case looking forward towards the bottom of the skid plate, and also the lower control arms.
dscn0114-jpg.761917

dscn0118-jpg.761927

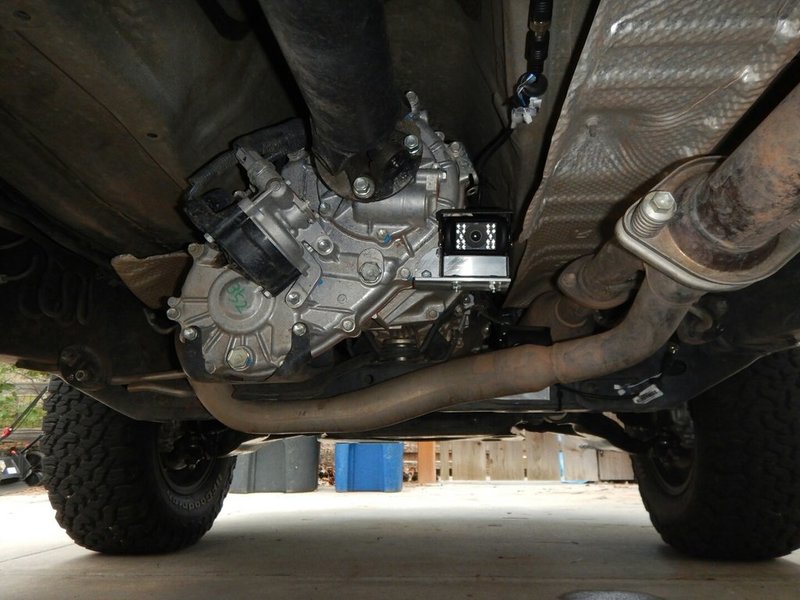

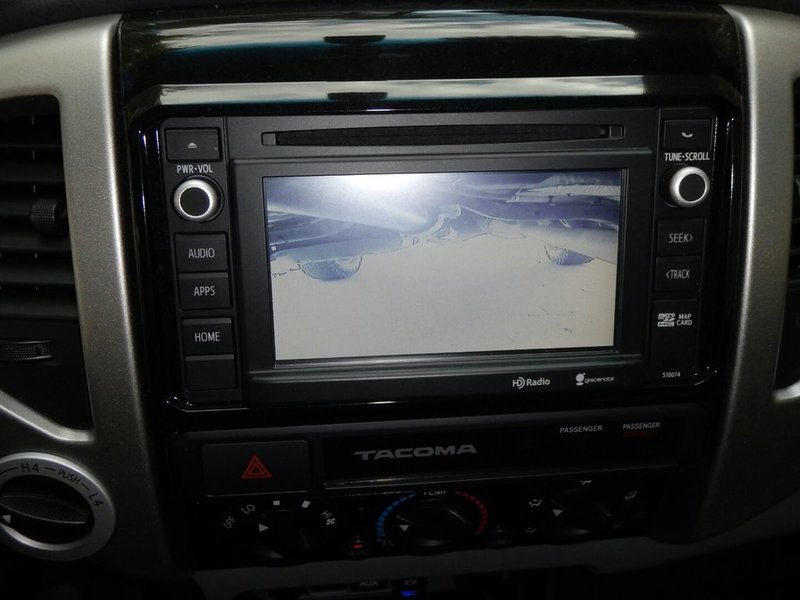

And the third is near the second, but looks backwards, with a mirror image.
dscn0113-jpg.761918

dscn0119-jpg.761928

Of course, I still have the backup camera as a selection, and I have everything in place to add up to two more cameras if ever I desire. I might use one of them to connect to an RCA jack so you could route any video feed you desire to the unit.

I took it for a short off-road spin and having the views of what's going on in front and underneath is fantastic!

I've hit so many deer driving for the last 30 years! I know as soon as I hooked up the front camera,bam broadside! Looks like you did a Great job with all of the install work!

silverpataco said:
I've hit so many deer driving for the last 30 years! I know as soon as I hooked up the front camera,bam broadside! Looks like you did a Great job with all of the install work!
Click to expand...
Could be used to see the final expression on the deers face before WHAM!! Lol . Then tag it and stick the meat in the freezah

First use of the cameras is to log the issue with the needle bearing of the left cv shaft differential joint. I'm starting to think I need to add a dvr. (By the way, I took this mud wallowing and two of the three "waterproof" cameras had small leaks. They're sealed now!)

I know I'm late to this, but this is brilliant and answers most every question I have about creating this set-up.

What did you use for the relay bank and the cameras? And where did you source them?
