1980 2wd 20r 5 spd.

Discussion in 'Toyota Pickup Forum' started by OR17TRD, Aug 25, 2020.

  1. OR17TRD

    OR17TRD Well-Known Member

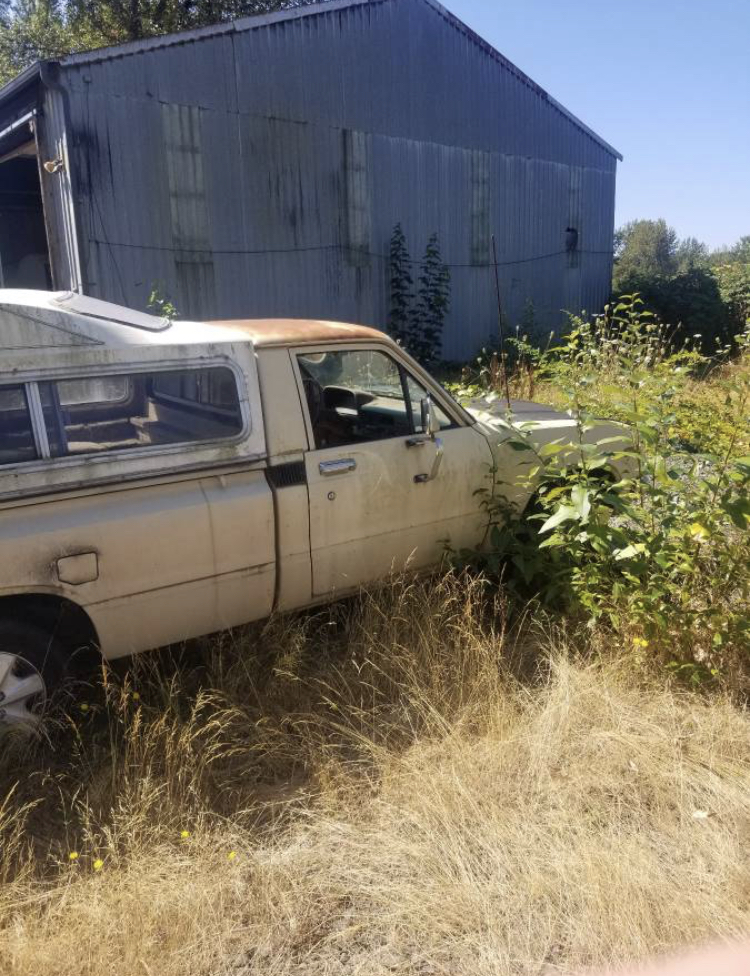

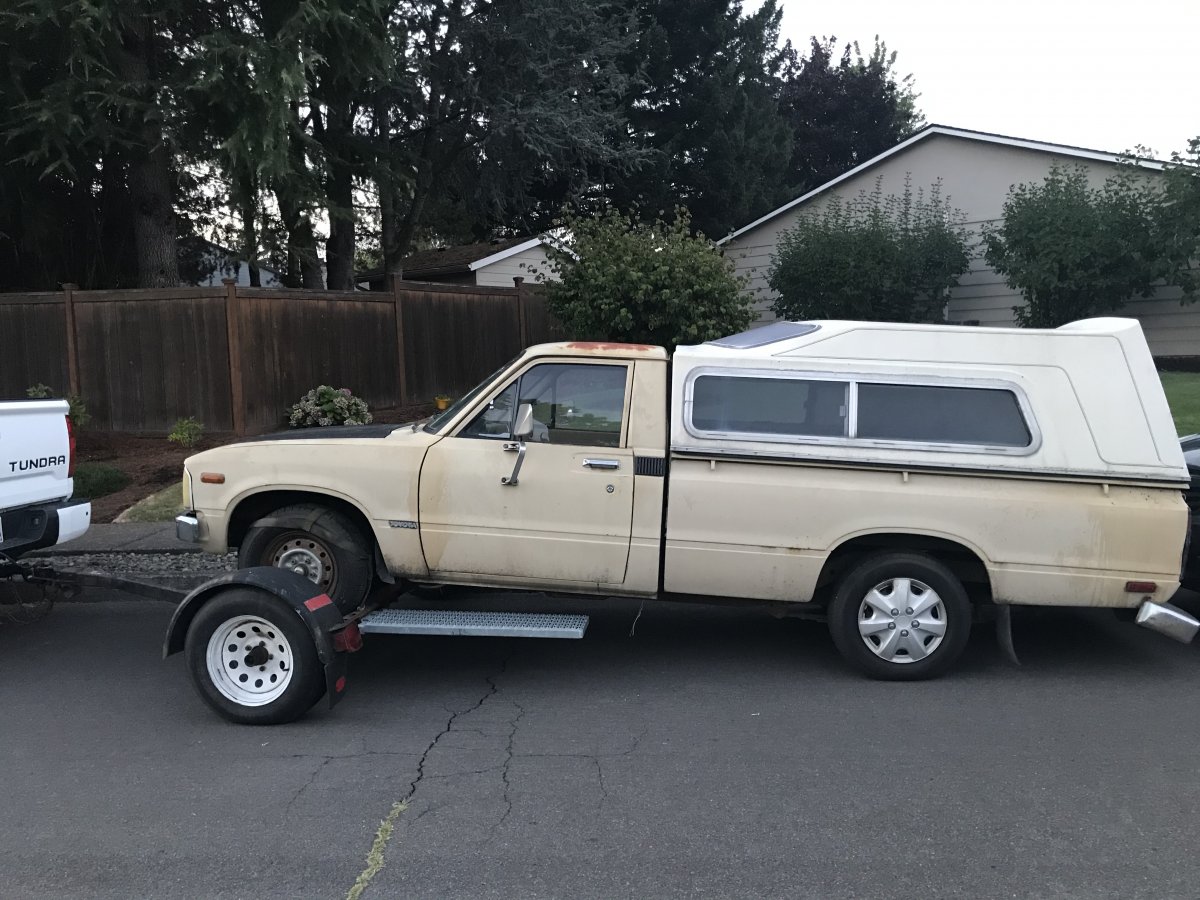

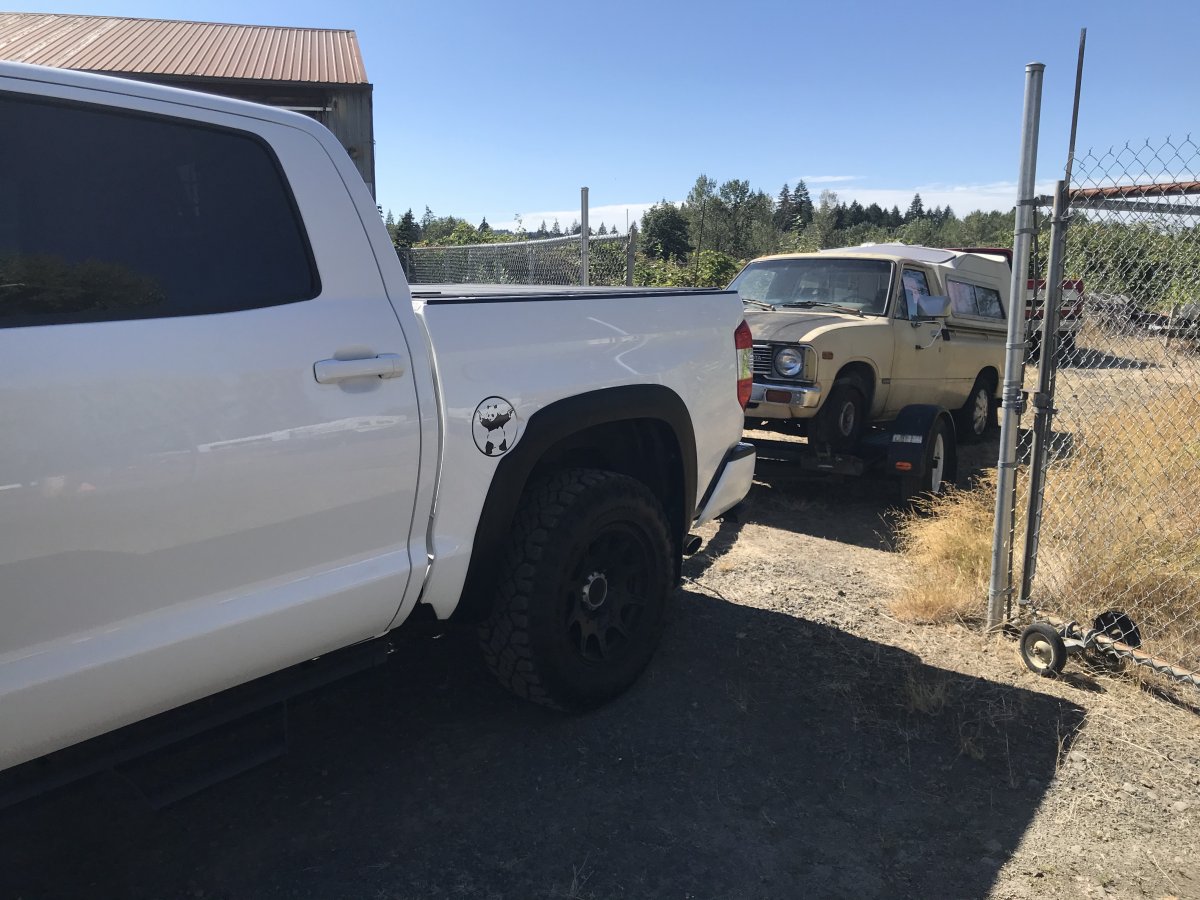

    1980 project PPT. Saved this 1980 Toyota pickup from a field. Going to bring it back to life.
    8B689C4B-0027-4B1F-BB01-3A3DE5B41ED1.jpeg 83332AD4-04A0-4BFF-8068-2CFED5902B55.jpeg B2680D09-5469-40C0-B55D-18A66D9E6683.jpeg

  2. Avatar

    Tacoma Forum Sign Up!

    Join TacomaForum.com Today - It's Totally Free!

    Are you a Toyota truck fan? If so we invite you to join TacomaForum.com. Our site is specifically designed for you and it's a great place for Toyota Tacoma Fans to meet online.
    Once you join you'll be able to post messages, upload pictures of your truck, and have a great time with other Toyota Tacoma fans. Whether your an old timer or just bought your Tacoma you'll find that TacomaForum.com is a great community to join. Best of all it's totally free!

    Join TacomaForum.com Today! JOIN FOR FREE

  3. OP
    OR17TRD

    OR17TRD Well-Known Member

    I got it to start but it idles wide open. I can manually hold the idle low. I adjusted every thing I could. The guy had a new Webber carb he gave me with it. I think I’m going to need to put it on.
    The engine sounds pretty good.

    Crawdad and B-Man like this.
  4. OP
    OR17TRD

    OR17TRD Well-Known Member

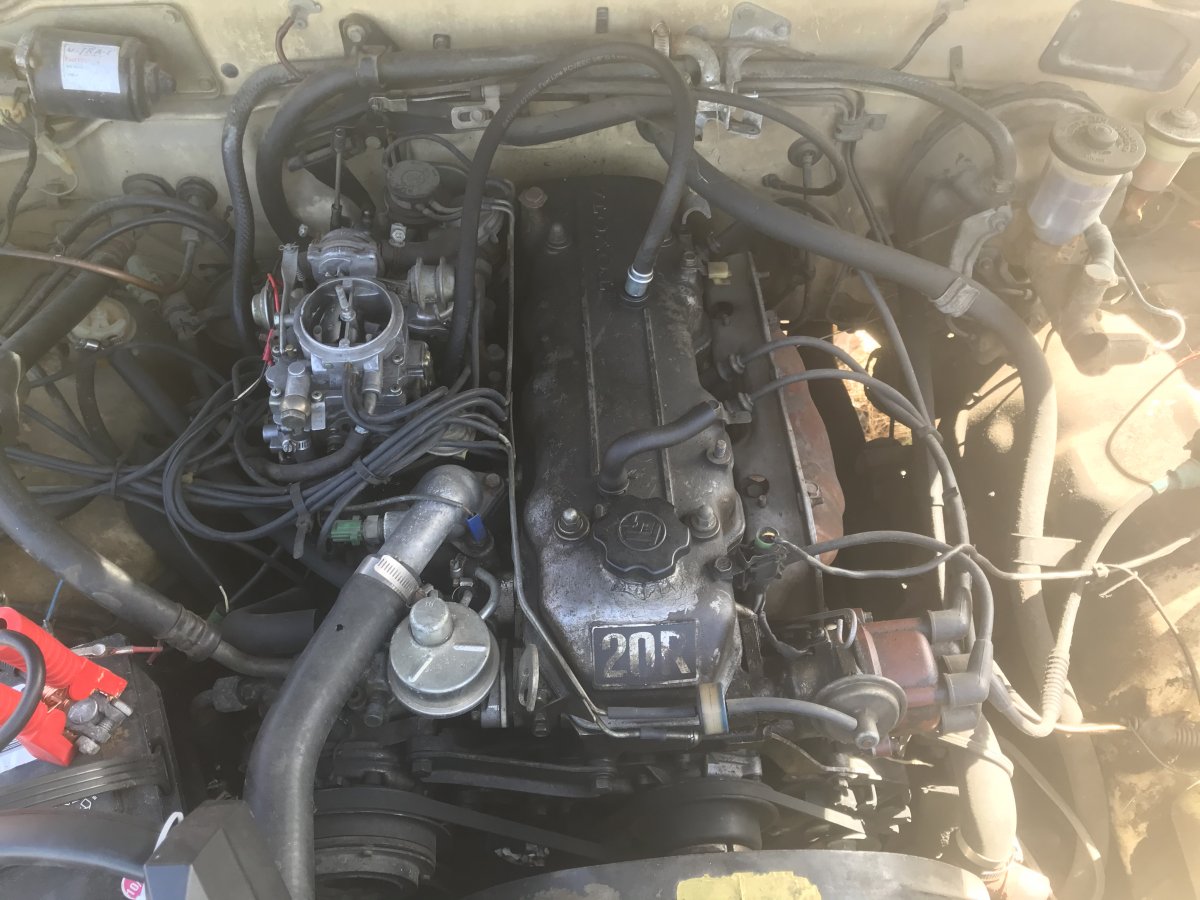

    I need to clean it up with some simple green so it’s not so greasy to work on. Looks like the front main seal is leaking. I need to get a gasket kit for it and start taking it apart. It has some pretty good exhaust leaks through the pipe. It’s leaking from the thermostat housing and one of the radiator tubes. Spark plugs look old and the distributor and wires probably need to be replaced. 76B4D1E1-C29C-4FE6-B52B-621F388E93F3.jpeg

    JonRod, Crawdad and B-Man like this.
  5. B-Man

    B-Man Well-Known Member

    Looks like a pretty fun project, OR!

    OR17TRD likes this.
  6. OP
    OR17TRD

    OR17TRD Well-Known Member

    Thanks.

    B-Man likes this.
  7. OP
    OR17TRD

    OR17TRD Well-Known Member

    I got the higher idle figured out. It was the gas peddle. It had a bunch of dirt and debris stuck up all around the base on the floor board. The hinge is pretty rusted up and causing it to not rebound and stick making it idle at full throttle. It needs a new gas peddle. I tuned the carb it seems to be ok. Drove it a little and clutch/transmission seems to be ok.
    I think I’ll still put this Webber on since I have it. Time to get a gasket kit, new hoses, drain all the fluids, clean out the fuel system and brake system, flush all the lines, tune up parts and see how she rolls for 40yrs old.
    Looks like there is some funky wiring with the head lights and turn signals. I’m not a fan of the electrical.

    Scott Wyman, Crawdad and B-Man like this.
  8. Crawdad

    Crawdad Well-Known Member

    That's an awesome project dood!!!
    Luvit!

    OR17TRD, Scott Wyman and B-Man like this.
  9. OP
    OR17TRD

    OR17TRD Well-Known Member

    Thanks.

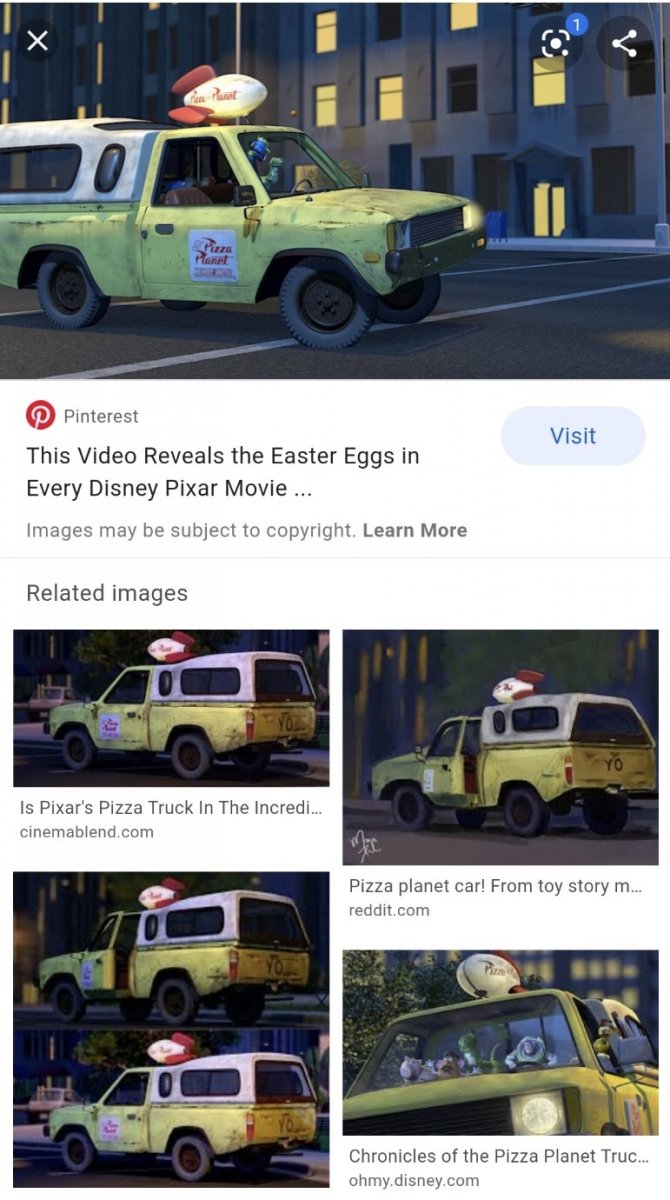

    I’m going to turn it into a “Pizza Planet Truck” (PPT) based off the Pixar movies. It’s been in every one of their movies except the Incredibles. Mainly recognized from the Toy Story movies.

  10. OP
    OR17TRD

    OR17TRD Well-Known Member

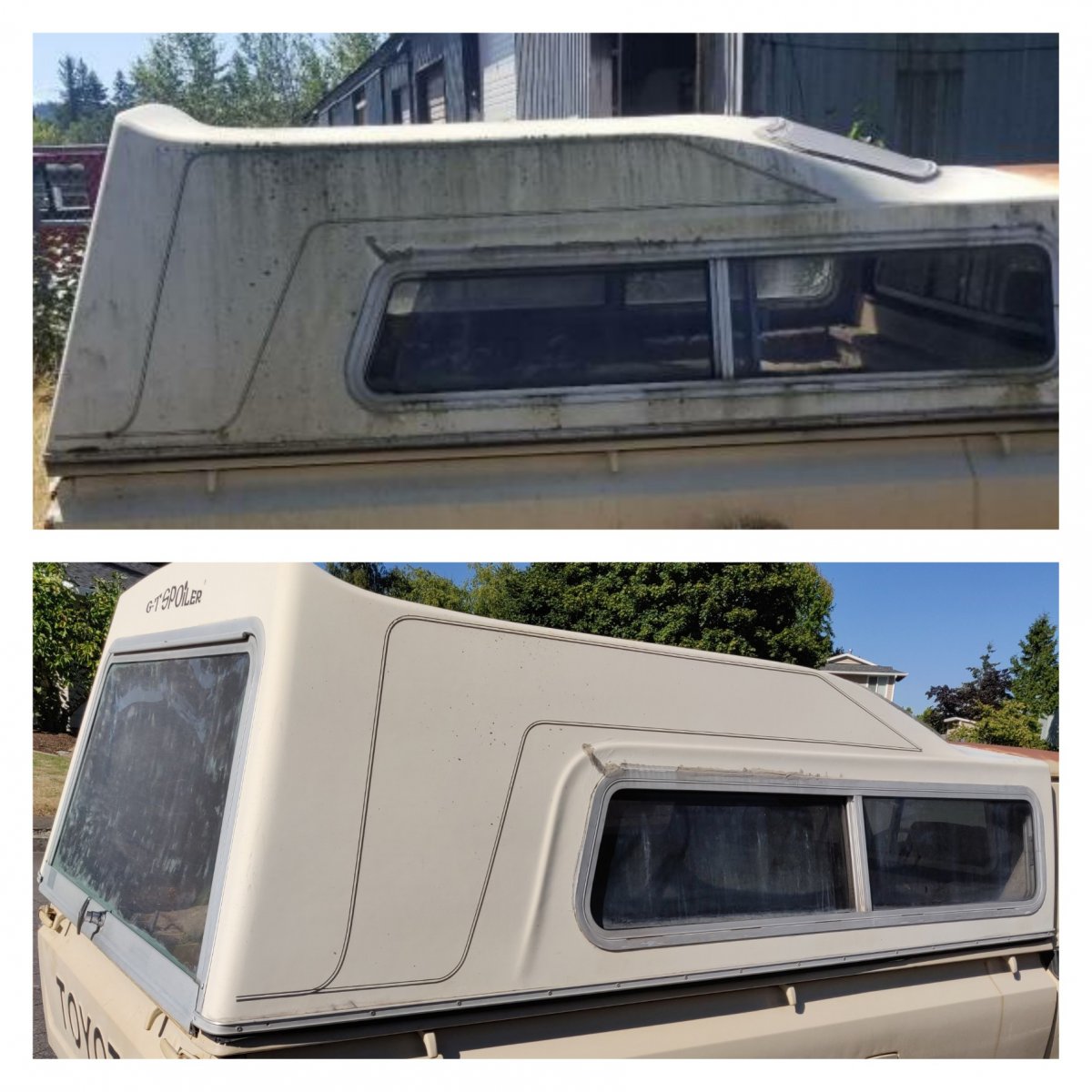

    Canopy cleaned up good. D9470AA3-D354-4152-B10F-8A11B6DAD4E3.jpeg

    Scott Wyman, B-Man and Crawdad like this.
  11. OP
    OR17TRD

    OR17TRD Well-Known Member

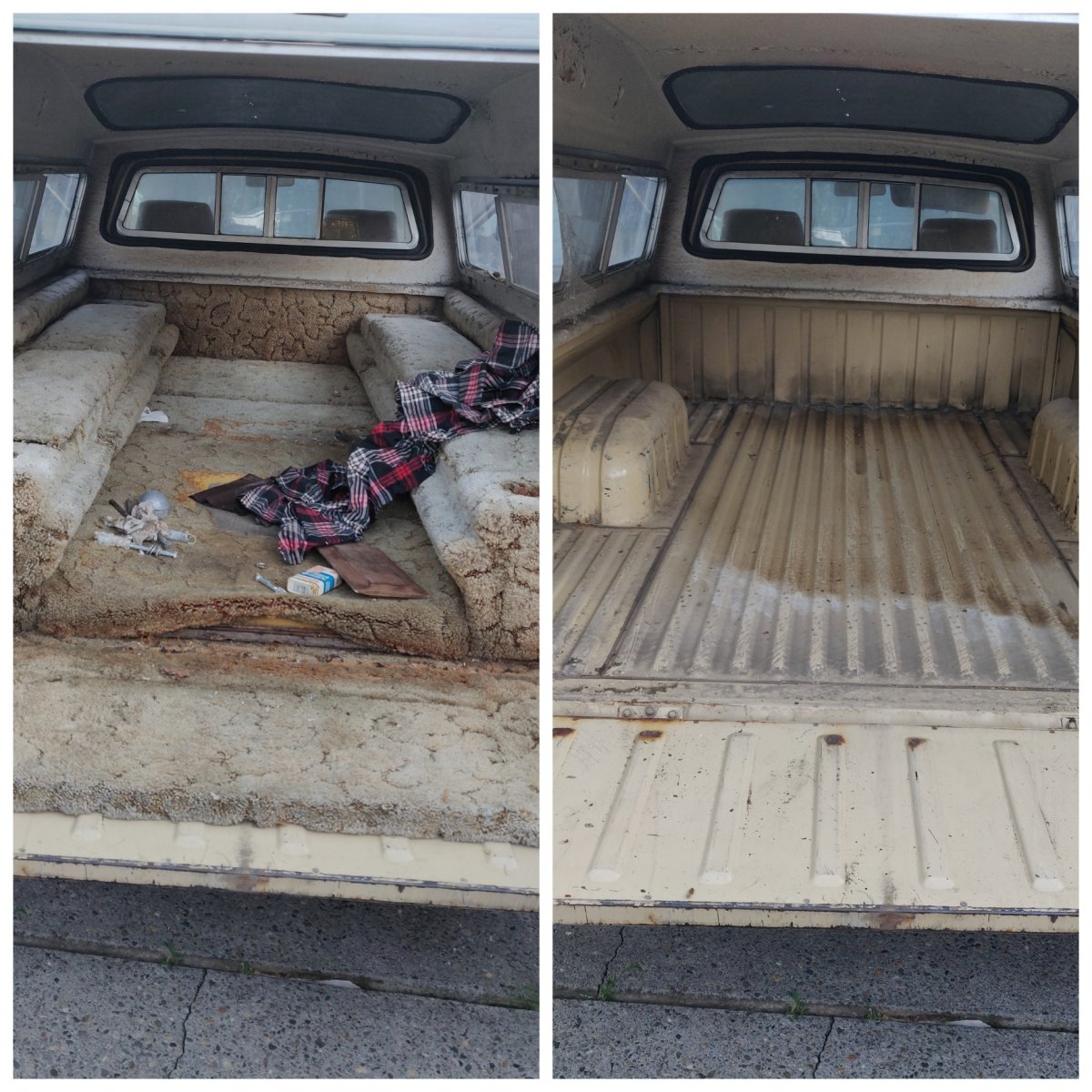

    Took the custom carpeted bed box out. The bed is in really good shape. Hardly any rust or wear, it’s dirty but can be cleaned. The tail gate has a couple cancer spots but not all the way through (fixable) There was a bed mat under the boxes, I’ll clean it up and use it. C5AF63CF-215A-4AFB-A77C-8A8FF8C39F2E.jpeg

    Scott Wyman, B-Man and Crawdad like this.
  12. OP
    OR17TRD

    OR17TRD Well-Known Member

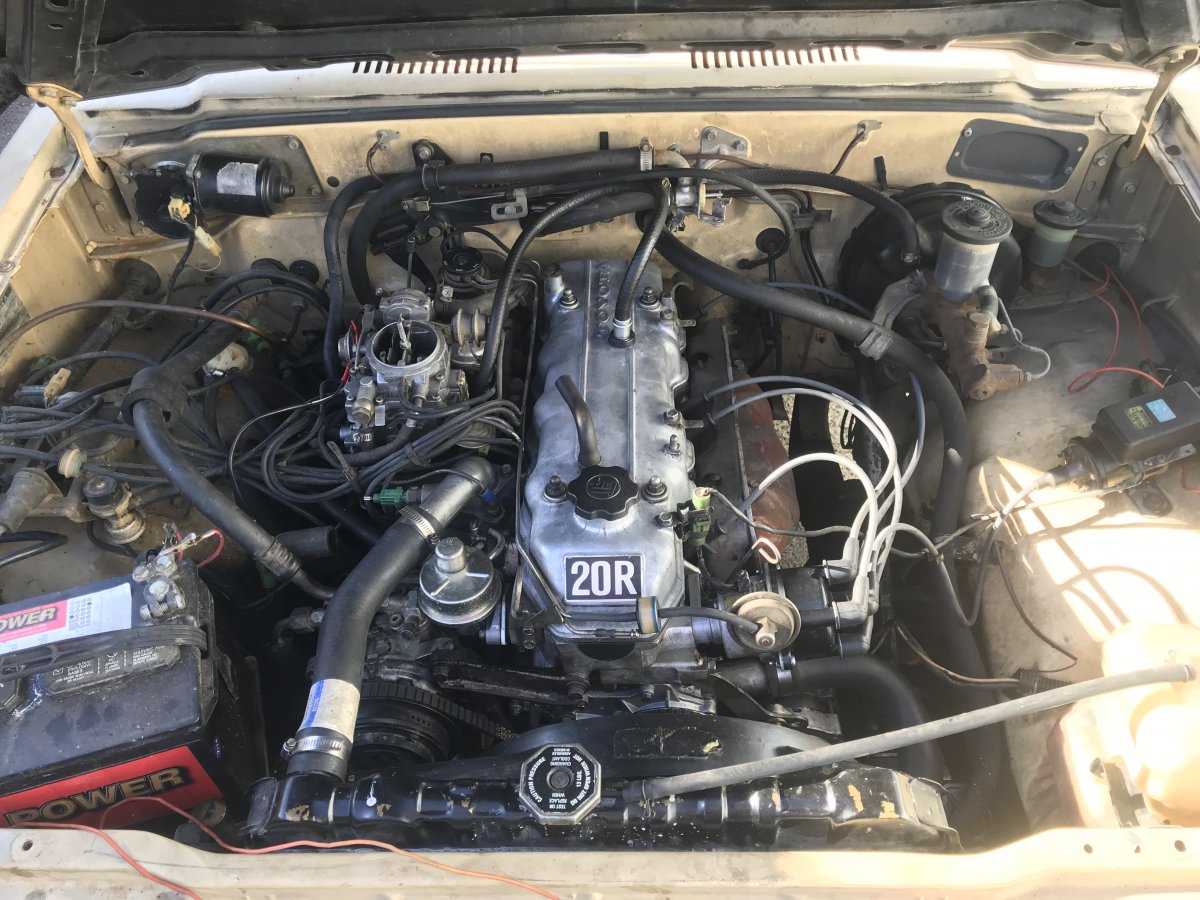

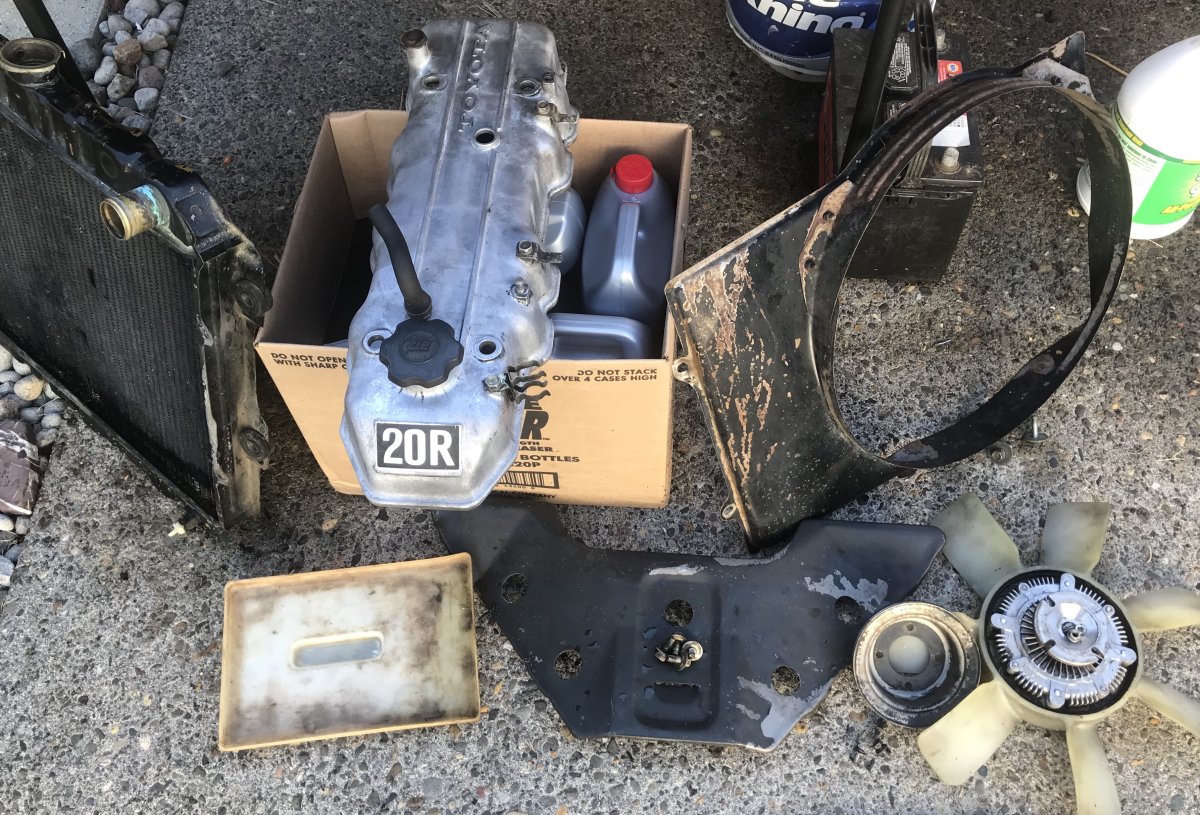

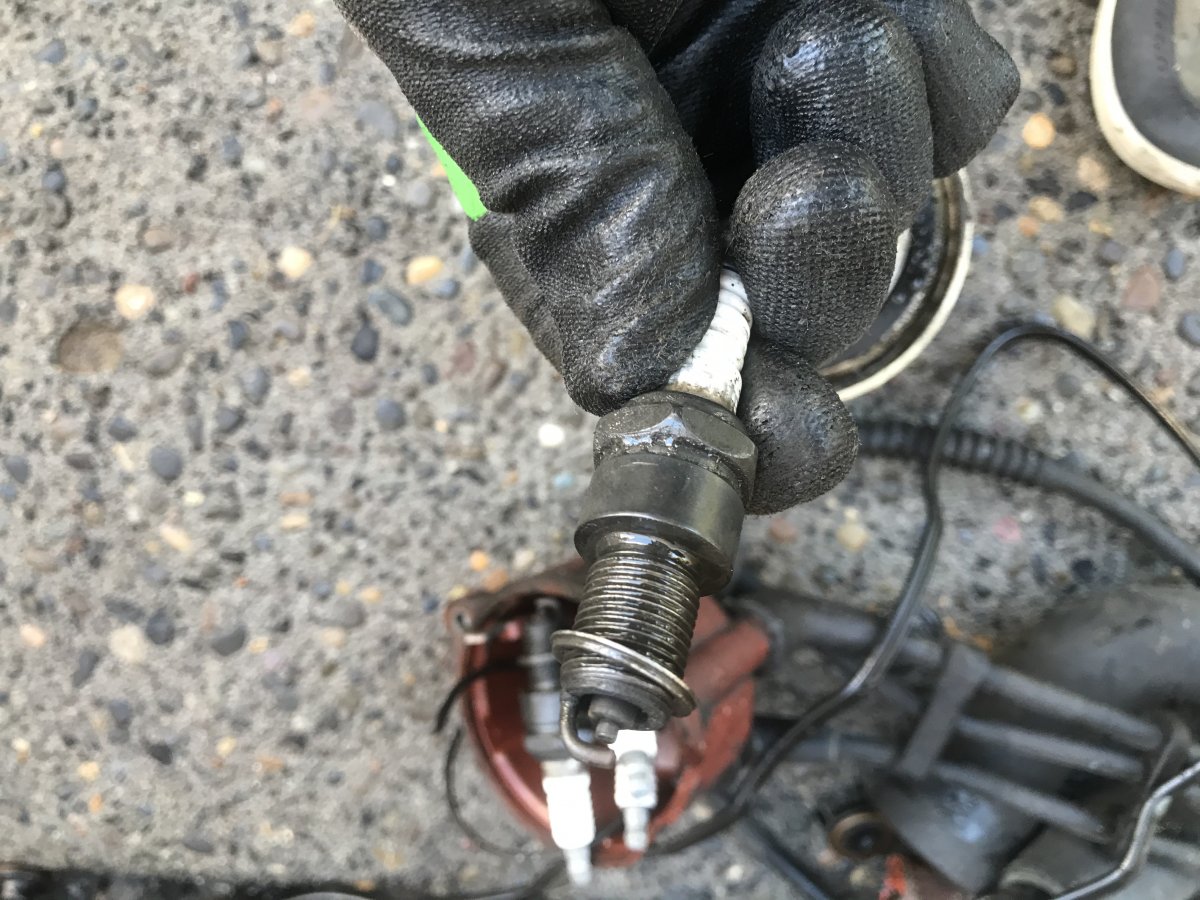

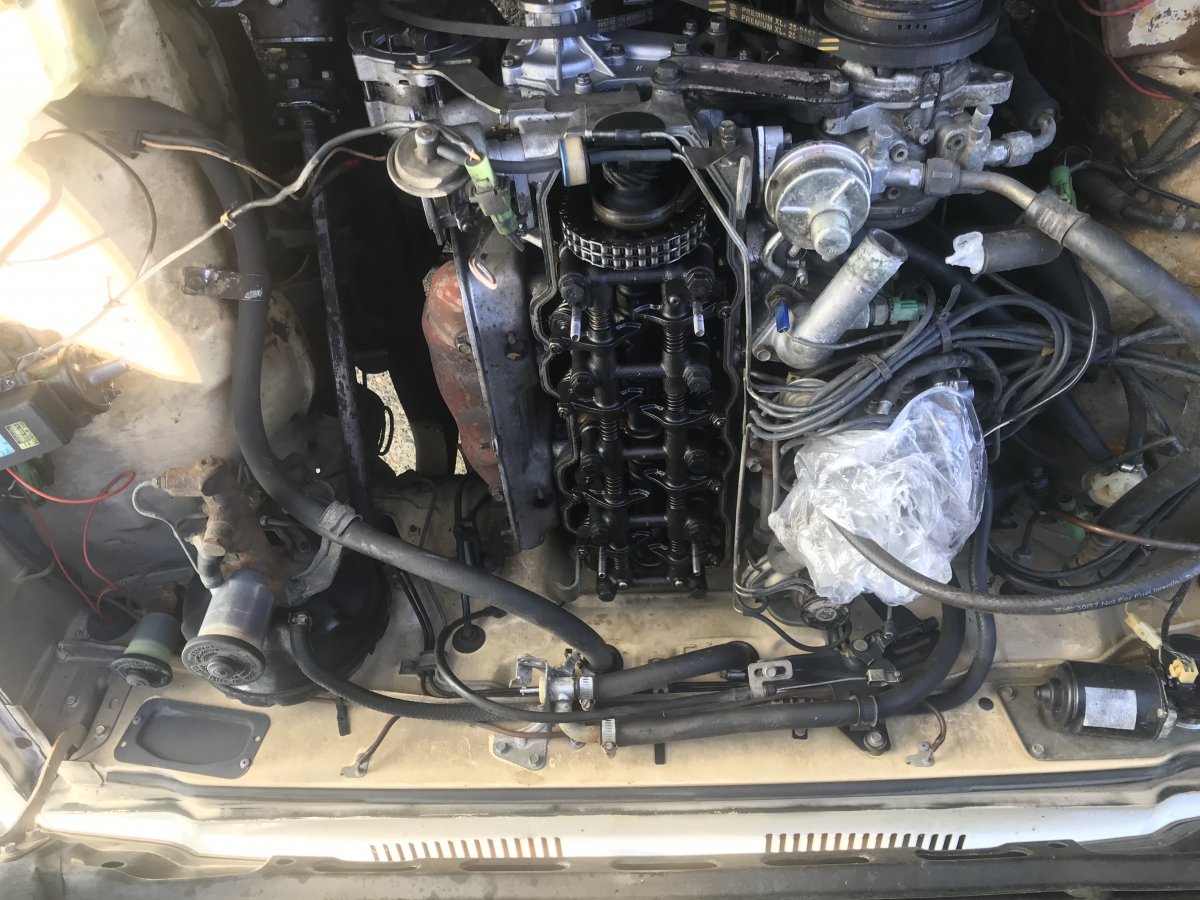

    Cleaned up the engine bay so I could work on it a little easier without getting to greasy. Valve cover cleaned up good. Got the front main seal replaced. The one that was in there was hard and brittle, no wonder it was leaking.

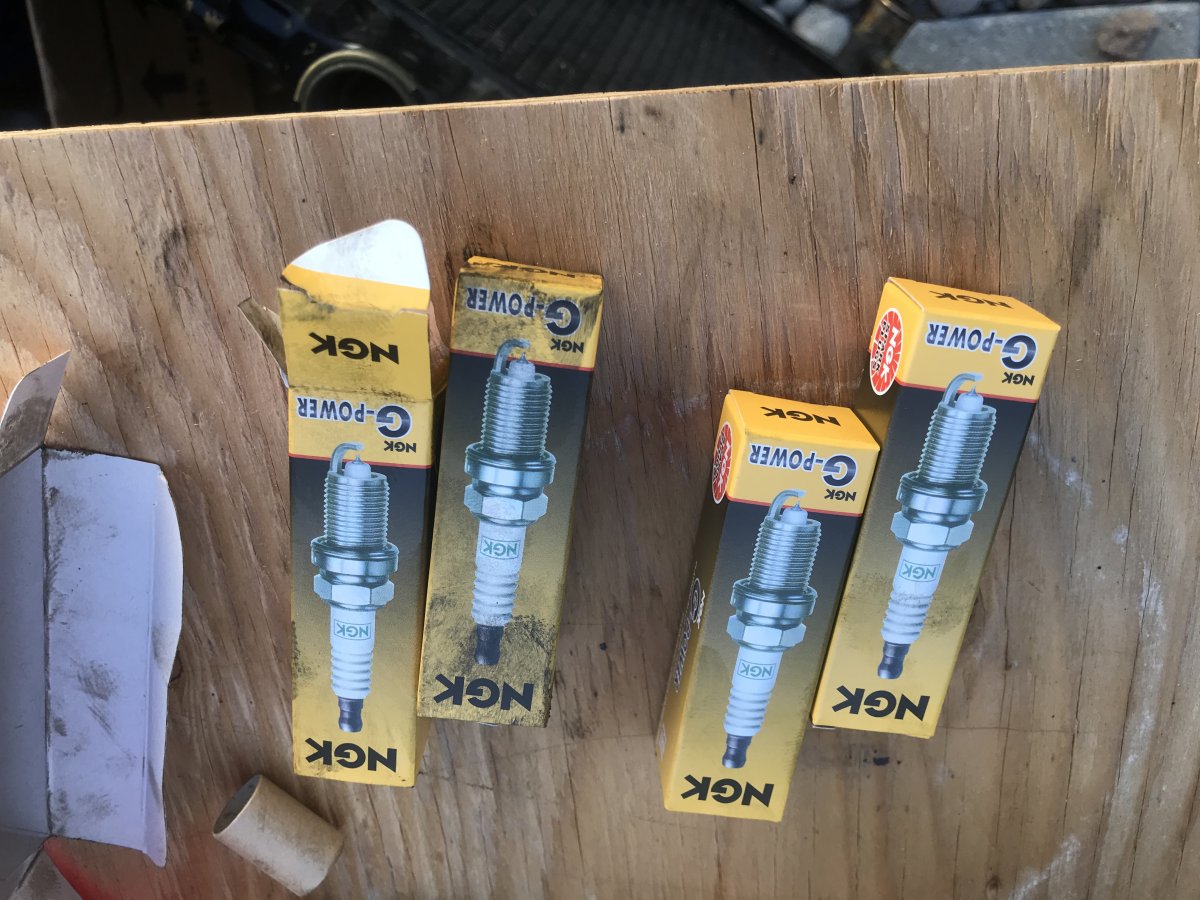

    Painted the fan shroud it was looking bad. Flushed the radiator and drained the oil. Swapped out the plugs for some NKG platinums, distributor, rotor and wires. Replaced the belts. I was trying to clean parts as I was going. I should be able to put it all back together tomorrow and start working on getting the Weber carb on.
    Found more electrical issues so that’s going to be more fun. F9BB8A20-E801-492B-A690-BD80753177B9.jpeg 2DA4F3A0-874D-4F31-97C4-0C51EA254A72.jpeg B5296C4A-EFB7-4E6C-9BA5-806D3FC2ACC9.jpeg D25FC488-383C-42F1-B5BD-08ED7293667A.jpeg

    Last edited: Aug 29, 2020
    Crawdad, Scott Wyman and B-Man like this.
  13. Scott Wyman

    Scott Wyman Well-Known Member

    What a great project truck! I have my eye on a similar truck, but it's not sitting in a field. It's on a used car lot here in town. Gonna stop by today and see what they want for it

    B-Man and OR17TRD like this.
  14. sjoh527

    sjoh527 Well-Known Member

    I’ll be following this thread for sure! Awesome find and awesome project!

    OR17TRD and B-Man like this.
  15. OP
    OR17TRD

    OR17TRD Well-Known Member

    Got the thermostat, new hoses, fresh fluids in and put back together. Still need to get the gas pedal figured out it sticks bad. I’m having a hard time finding a replacement. I’ll try to see if I can fix this one but it’s pretty rusted away. The exhaust needs to be addressed it’s in bad shape. Probably pull the front wheels off and see how the breaks look today. The exhaust manifold gasket needs replaced but I need new manifold bolts it is missing at least one that I can see. I’m sure she’s happy to have fresh fluids running through her.
    Bartle thought we were going when I started it up.

    Scott Wyman, Crawdad and B-Man like this.
  16. OP
    OR17TRD

    OR17TRD Well-Known Member

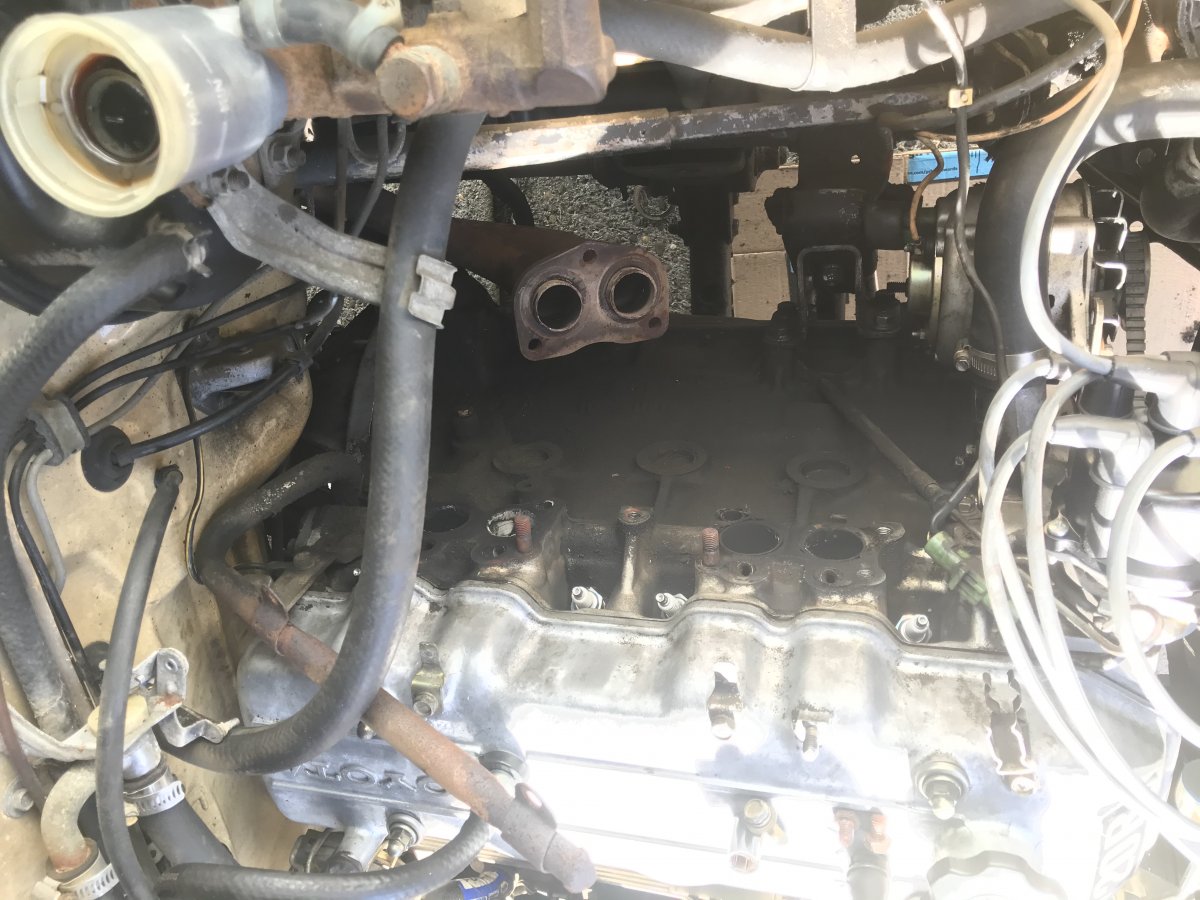

    There was a good leak around the exhaust manifold gasket so I pulled it off to fix it. It’s got a small crack in it. :(
    I can’t find a new aftermarket OEM one. Debating on putting an aftermarket header on it and taking some of the smog stuff off. 89A68A9A-1437-445D-BC92-A6ADA40CC0C6.jpeg

    Scott Wyman, Crawdad and B-Man like this.
  17. Scott Wyman

    Scott Wyman Well-Known Member

    Damn. I thought Rock Auto had everything.

    OR17TRD and B-Man like this.
  18. OP
    OR17TRD

    OR17TRD Well-Known Member

    Did you look for a 20r exhaust manifold there?
    I couldn’t find an OEM replica.

    The crack isn’t that bad. If I have to I’ll just use it.

    Trying to find stuff for the 20r has proven to be much more difficult then 22r/re parts.

    Last edited: Sep 7, 2020
    Scott Wyman, Crawdad and B-Man like this.
  19. Crawdad

    Crawdad Well-Known Member

    I vote header but could try this... lol

    OR17TRD and B-Man like this.
  20. Scott Wyman

    Scott Wyman Well-Known Member

    Cant say I've looked for that specific part.
