6X9 Front speaker fit pictures

Discussion in '2005 - 2015 Toyota Tacoma' started by Tacoma06, Aug 28, 2017.

  1. Tacoma06

    Tacoma06 Well-Known Member

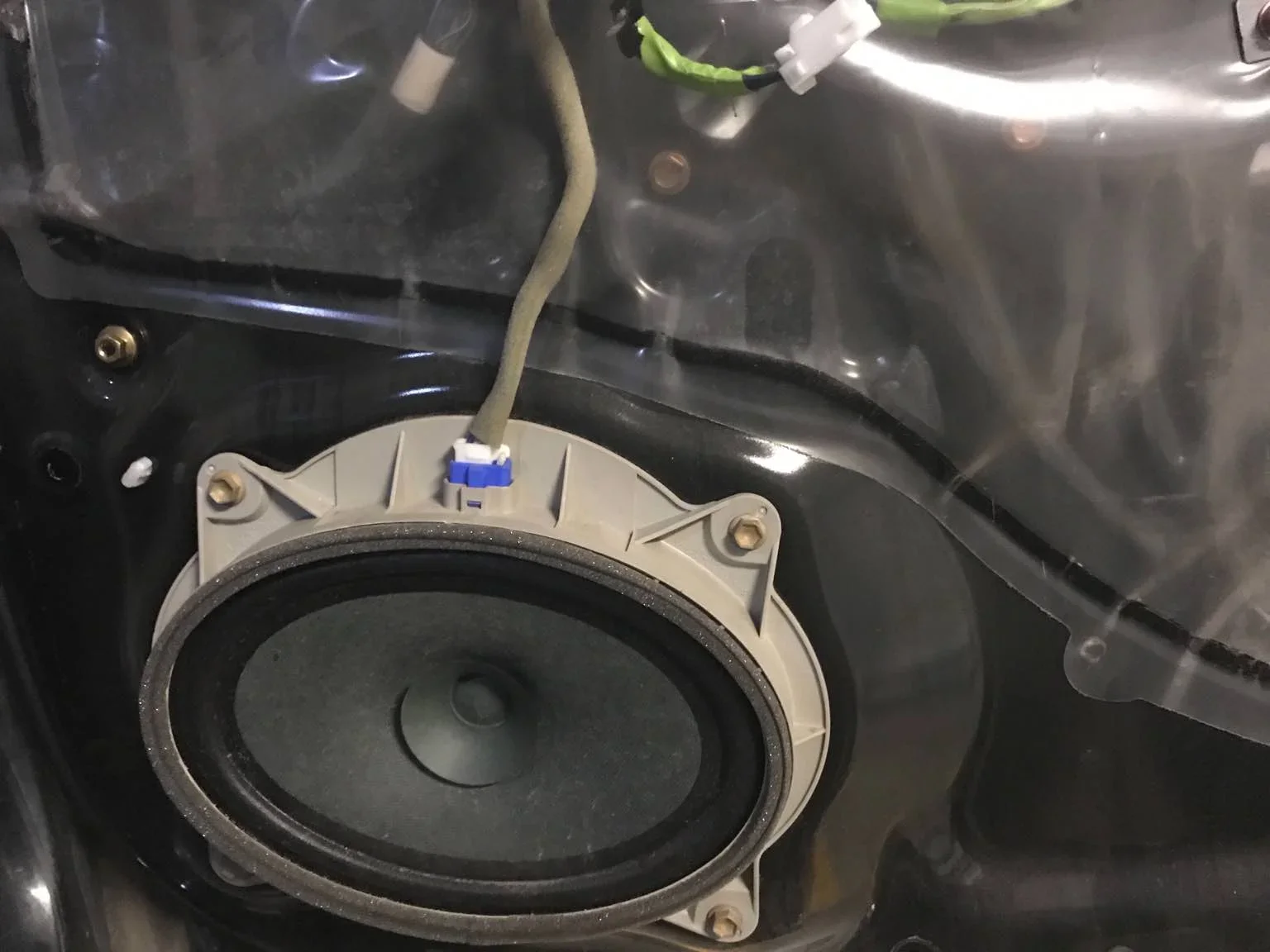

    Removed old speaker from housing and cut out all plastic bracing. Then use 1 1/2" screws to hold new speaker straight in hole of old bracket. Then wire using existing plug. Bolt back. Your done.

    Non-JBL DCSB 4X4 2006.

    mrtaco, OR17TRD, Bogunn and 1 other person like this.
  2. Avatar

    Tacoma Forum Sign Up!

    Join TacomaForum.com Today - It's Totally Free!

    Are you a Toyota truck fan? If so we invite you to join TacomaForum.com. Our site is specifically designed for you and it's a great place for Toyota Tacoma Fans to meet online.
    Once you join you'll be able to post messages, upload pictures of your truck, and have a great time with other Toyota Tacoma fans. Whether your an old timer or just bought your Tacoma you'll find that TacomaForum.com is a great community to join. Best of all it's totally free!

    Join TacomaForum.com Today! JOIN FOR FREE

  3. mrtaco

    mrtaco Member

    Very nice ◇

    JonRod likes this.
  4. Bojangles

    Bojangles Well-Known Member

    Didnt have to clear the panels?

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  5. Bojangles

    Bojangles Well-Known Member

    Did you rewire them?
    If not, the signal isnt optimal.... the signal goes to doormount tweeter 1st, then down to the main speaker. The pink or purple wires need to be snipped to have clean signal go thru the new drivers.

    Its a little tracing, but u can see what i mean... crutchfield and wire manual verfied the signal path, but im not 100% sure how it went... i remember something about the purple.

  6. Bojangles

    Bojangles Well-Known Member

    [​IMG]

    I apparently wrote it on my doors and took a pic of 1 side.

  7. TacoKen

    TacoKen Well-Known Member

    Last edited: Aug 29, 2017
    not2shaka and Bogunn like this.
  8. OP
    Tacoma06

    Tacoma06 Well-Known Member

    Yep. Done. Dual tweets now hahhaha. Thanks for suggestion

  9. Bojangles

    Bojangles Well-Known Member

    Eh?
    Dual tweets?

  10. OR17TRD

    OR17TRD Well-Known Member

    It's presidential.

    TacoKen and Bogunn like this.
  11. OP
    Tacoma06

    Tacoma06 Well-Known Member

    Yea. Buddy. Cut those tweets off of new 6X9. Down to 2-ohms. Much better.

  12. Bojangles

    Bojangles Well-Known Member

    ?
