Blower motor resistor

Discussion in 'Maintenance' started by Bojangles, Jul 10, 2018.

  1. Bojangles

    Bojangles Well-Known Member

    Well yesterday the trucks ac blower only worked on high.
    Great.... sent a PM to the Nancy, and got hooked up with a link to replacement parts, and instructions.

    Amazon.com had the parts here today and they have already been installed. Ac blower works on all settings now. My resistor was indeed scorched a bit, and the connector on the other side was worse

    Appreciation valve wide open
    @whippersnapper02 !!

    Parts...
    https://www.amazon.com/dp/B01JJ5KAVA/ref=cm_sw_r_cp_api_aM5qBb5MTZCKN

    Writeup someone did
    https://www.tacomaworld.com/threads/replacement-of-hvac-blower-motor-resistor.8310/

    OR17TRD, Bogunn, kp.taco and 2 others like this.
  2. Avatar

    Tacoma Forum Sign Up!

    Join TacomaForum.com Today - It's Totally Free!

    Are you a Toyota truck fan? If so we invite you to join TacomaForum.com. Our site is specifically designed for you and it's a great place for Toyota Tacoma Fans to meet online.
    Once you join you'll be able to post messages, upload pictures of your truck, and have a great time with other Toyota Tacoma fans. Whether your an old timer or just bought your Tacoma you'll find that TacomaForum.com is a great community to join. Best of all it's totally free!

    Join TacomaForum.com Today! JOIN FOR FREE

  3. OP
    Bojangles

    Bojangles Well-Known Member

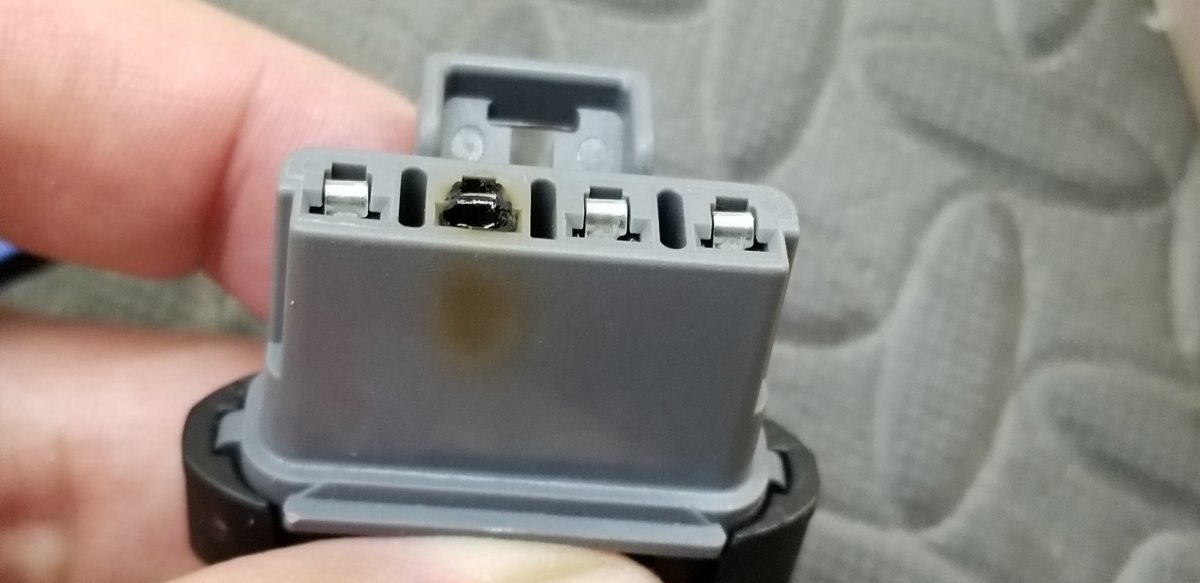

    Connector

    OR17TRD, Bogunn, kp.taco and 2 others like this.
  4. kp.taco

    kp.taco Well-Known Member

    That nancy is a pretty helpful dude!

  5. Bogunn

    Bogunn Well-Known Member

    Bojangles likes this.
  6. OR17TRD

    OR17TRD Well-Known Member

    $50 free shipping worth every dollar to have your AC fully functioning in July.

    Bojangles and Bogunn like this.
  7. Bogunn

    Bogunn Well-Known Member

    Durn skippy $50 is worth it.

    Bojangles likes this.
  8. kp.taco

    kp.taco Well-Known Member

    Well... I guess it's my turn now @Bojangles went out to eat with wife tonight came out of restaurant and blower only works on high.. I wiggled the wires and all is good now but better go ahead and order the parts.. Smh

    OR17TRD and Bogunn like this.
  9. OP
    Bojangles

    Bojangles Well-Known Member

    Kraps.... make sure u got some tiny sockets.

    kp.taco and Bogunn like this.
  10. Bogunn

    Bogunn Well-Known Member

    That sucks

    kp.taco likes this.
  11. OP
    Bojangles

    Bojangles Well-Known Member

    Repair thread said 5.5mm
    I found an old set of lil sae sockets and 1 fit. Cant recall the size but it was small.
    A stubby 1/4" fine tooth ratchet was alot of help.

    Bogunn and kp.taco like this.
  12. OR17TRD

    OR17TRD Well-Known Member

    It’s a hot brony.

    Bojangles and Bogunn like this.
  13. Bogunn

    Bogunn Well-Known Member

    Haha.
    Poor @kp.taco is sweating to death in his pony costume.

    kp.taco and Bojangles like this.
  14. OP
    Bojangles

    Bojangles Well-Known Member

    Well, still works... just on high right?

    Bogunn likes this.
  15. Bogunn

    Bogunn Well-Known Member

    True. That makes it a little better but it’s just a matter of time till high goes out too probably.

  16. OP
    Bojangles

    Bojangles Well-Known Member

    Looking at the links in the pigtail, im wondering if its 100% juice (high), then the other links connect to the resistor/s and this causes a stepdown. Thus why 100% high still works?

    Could worst case scenario be all or nothing? On or off?

    Bogunn likes this.
  17. Bogunn

    Bogunn Well-Known Member

    Maybe so.
