Max tire size on 2014 TRD Sport?

Discussion in '2005 - 2015 Toyota Tacoma' started by Eric14TRD, Sep 20, 2018.

  1. Eric14TRD

    Eric14TRD Member

    Time to replace the stock tires, looking to increase size. It came with 265/65/17s. I found OEM 16" wheels with 285/75's on them. Doing the math, that looks like about 33's. Has anyone put 33's on without a lift kit?? I'm sure i will need spacers, but don't have the cash for the full work up yet. Thanks for any input- E

  2. Avatar

    Tacoma Forum Sign Up!

    Join TacomaForum.com Today - It's Totally Free!

    Are you a Toyota truck fan? If so we invite you to join TacomaForum.com. Our site is specifically designed for you and it's a great place for Toyota Tacoma Fans to meet online.
    Once you join you'll be able to post messages, upload pictures of your truck, and have a great time with other Toyota Tacoma fans. Whether your an old timer or just bought your Tacoma you'll find that TacomaForum.com is a great community to join. Best of all it's totally free!

    Join TacomaForum.com Today! JOIN FOR FREE

  3. TacoKen

    TacoKen Well-Known Member

    33" tire with no lift won't fit. You would need at least 2 1/2" lift and then remove some plastics.

    OR17TRD and whippersnapper02 like this.
  4. OP
    Eric14TRD

    Eric14TRD Member

    thanks man- i appreciate it

  5. OR17TRD

    OR17TRD Well-Known Member

    Welcome to the forum.
    @TacoKen got it.
    You can fit 265/75/16 no lift,
    275/70/16 1.5-2” lift +13 to 0 offset is best
    you’ll need 2.5”+ lift to get the 285’s to fit up front. You’ll also want wheels that have a 0 or -6 offset for best fit. I wouldn’t go wider than 9” on the wheels. 7-8.5” is best.

    lonewolf and merzerk like this.
  6. OP
    Eric14TRD

    Eric14TRD Member

    Thanks!

    OR17TRD likes this.
  7. lonewolf

    lonewolf Member

    Nice. Some good info there

    OR17TRD likes this.
  8. TacoBOB77

    TacoBOB77 Well-Known Member

    I got a 05 taco and put 285/75/17 and I got a 3" front and 1" rear plus 1.25 inch wheel adapters that are hubcentric and cut a little piece of plastic.hope this helps

  9. OP
    Eric14TRD

    Eric14TRD Member

    Thanks! the wheels that came stock are 17x7.5" with a 30mm offset. In general- it a wheel/tire combo fits on a stock 4Runner from this same generation, will it fit just fine on the tacoma? thanks for your help-

  10. OP
    Eric14TRD

    Eric14TRD Member

    I found a 285/70/17 set of take-offs from an FJ Cruiser, that's about an inch less in height than yours i think, but does that make them wider, since they are the same width? I could fit them on my stock rims (30mm off set) or use the ones from the FJ (but they have 15mm offset). not sure what setup i'd have to look at for those. obviously, i'm working within a fixed budget.Thanks !-

  11. OR17TRD

    OR17TRD Well-Known Member

    The stock 4runner wheel/tire combo will fit the stock Tacoma.

  12. OR17TRD

    OR17TRD Well-Known Member

    No same width 285. The 70 and 75 is the height and that is a 0.9” difference.
    You’d want a 2.5-3” lift and use the wheels with the +15 offset from the FJ

  13. OP
    Eric14TRD

    Eric14TRD Member

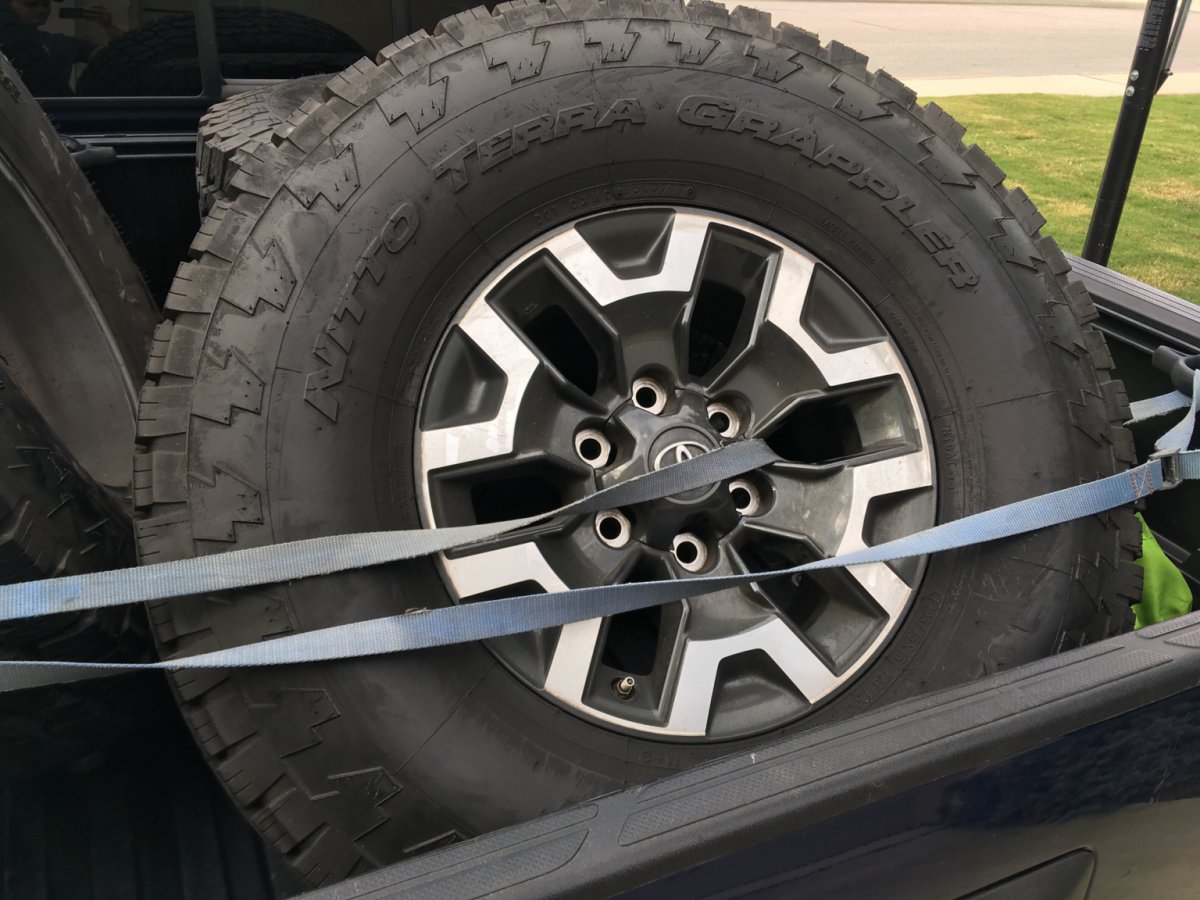

    Ended up getting these- 295/75/16s a guy took off his. I am thinking 3” up front with 1.5” spacers so I can turn with out rubbing. Does that sound about right?

  14. OP
    Eric14TRD

    Eric14TRD Member


    OR17TRD likes this.
  15. OR17TRD

    OR17TRD Well-Known Member

    It will rub but they should fit. A 1.5” spacer would be like -6 offset and 1.25” wheel spacers would be like a 0 offset with those wheels and tire combo both should work. Let us know.

  16. OP
    Eric14TRD

    Eric14TRD Member

    2” spacer a better choice? Do you think I will need to raise the the back end?

  17. OR17TRD

    OR17TRD Well-Known Member

    I would not go bigger than 1.5” spacers, 1.25” should work.
    Depends on the look you want. 3” up front with no rear lift would put you in a major bro lean. If you’re into that... otherwise I’d lift the rear at least 1.5”... 2” if you want more of a factory rake.

    Bogunn likes this.
  18. OP
    Eric14TRD

    Eric14TRD Member

    Thanks man, I appreciate your willingness to answer all of my questions

    OR17TRD likes this.
  19. OP
    Eric14TRD

    Eric14TRD Member

    With the new tires I am adding about 1.5” of total radius, do you think a 2” lift would be sufficient? Thanks again

  20. Crawdad

    Crawdad Well-Known Member

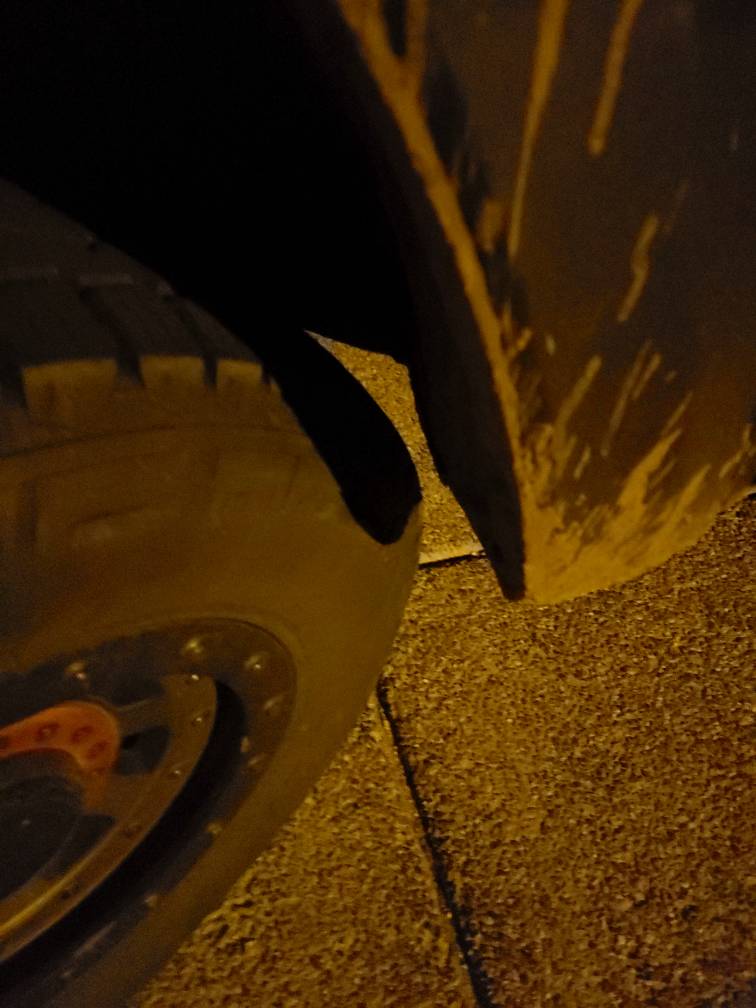

    I'm at 2" lift with the same size tire as you picked up. All I've had to do is trim plastic, will do the cab mount chop eventually, maybe over the holidays, I get very minor rubbing though, only turned and tucked. My caster is also at 4

    P.s.- #FRIENDSDON'TLETFRIENDSRUNSPACERS 20181104_202206.jpeg

    OR17TRD likes this.
  21. OR17TRD

    OR17TRD Well-Known Member

    Like @Crawdad said you’ll have some molding/trimming to do but 2” would be minimum lift. 2.5-3” is ideal. A good alignment can do wonders. 1.5” total means you’re 0.75” closer to the wheel well and 0.75” more ground clearance.

    Crawdad likes this.
