Pls help

Discussion in 'General Tacoma Discussion' started by John dev, Oct 9, 2018.

  1. John dev

    John dev Well-Known Member

    I was changing the dome lights inside my 2018 tacoma
    I think i blown a fuse but i cant find which fuse to check
    I dont have lights now inside my truck
    Plese help
    Picture of the fuse would be great

    Thanx

  2. Avatar

    Tacoma Forum Sign Up!

    Join TacomaForum.com Today - It's Totally Free!

    Are you a Toyota truck fan? If so we invite you to join TacomaForum.com. Our site is specifically designed for you and it's a great place for Toyota Tacoma Fans to meet online.
    Once you join you'll be able to post messages, upload pictures of your truck, and have a great time with other Toyota Tacoma fans. Whether your an old timer or just bought your Tacoma you'll find that TacomaForum.com is a great community to join. Best of all it's totally free!

    Join TacomaForum.com Today! JOIN FOR FREE

  3. OR17TRD

    OR17TRD Well-Known Member

    Should be in the junction box in the cab.

    Last edited: Oct 10, 2018
  4. OR17TRD

    OR17TRD Well-Known Member

    Good idea to take the fuse out when swapping builds so you don’t blow it :)

    John dev likes this.
  5. OR17TRD

    OR17TRD Well-Known Member

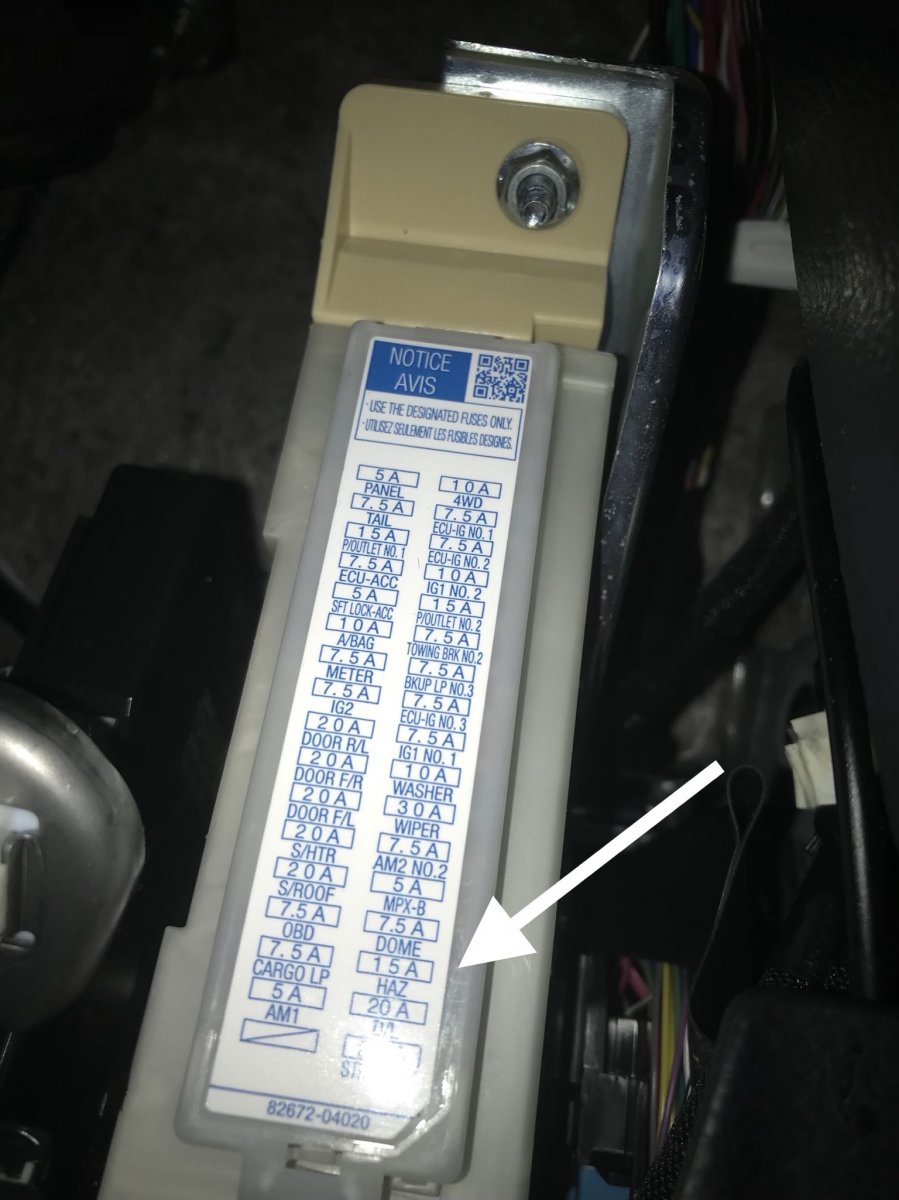

    Up under the drivers side dash by the hood release latch there is this box it has a diagram should be the one that says DOME 4AE65CA2-EA98-4C1F-9747-7F42DE61F78C.jpeg

    B-Man and John dev like this.
  6. OP
    John dev

    John dev Well-Known Member

    Hahahah thanx buddy your a great help
    Thank you thank you thank you sir

    I had to run down to oreily and buy a fuse
    7.5

    All good now working great

    OR17TRD and Bogunn like this.
  7. Bogunn

    Bogunn Well-Known Member

    Like @OR17TRD said, it’s always good to pull the fuse before changing bulbs, or at least turn the dome lights off before changing.
    There is a fuse puller and a couple spares in the fuse box under the hood. There isn’t a 7.5 though. A 10 would get you through in a pinch but I don’t like running a larger fuse.
    I bought a set of spare Bussman ATM-LP fuses to keep in the truck for this reason. You never need them til you’re already SOL.

    https://www.amazon.com/dp/B00L910U7C/ref=cm_sw_r_cp_api_DoAVBbGNRZQJ0

    B-Man, OR17TRD and John dev like this.
  8. OP
    John dev

    John dev Well-Known Member

    Ill do that when i continue changing my ligjt bulbs

    Thanx really appreciate it

    OR17TRD and Bogunn like this.
